Built · Commercial, Transit Infrastructure

CIBC Square

LOCATION
Toronto, Ontario
FIRM
Adamson Associates Architects
ROLE
Architectural Graduate
YEARS INVOLVED
2018-2019
PROJECT PHASES
Phase 1: CA · Phase 2: SD / SPA / DD
VIEW FIRM PROJECT PAGE
01 / PROJECT ORIENTATION

A transit-oriented commercial development combining two office towers, a GO bus terminal, PATH connections, and an elevated sky park above Toronto’s rail corridor.

SCALE
3,200,000 sf / 297,280 m² total · Two office towers · GO Bus Terminal · PATH connections · Elevated Sky Park
SOFTWARE
Revit · AutoCAD · Bluebeam
02 / PRIMARY DRAWING

Reading the project through plan, section, and elevation

A selected architectural drawing anchors the project’s scale, organization, and coordination before the technical sequence begins.

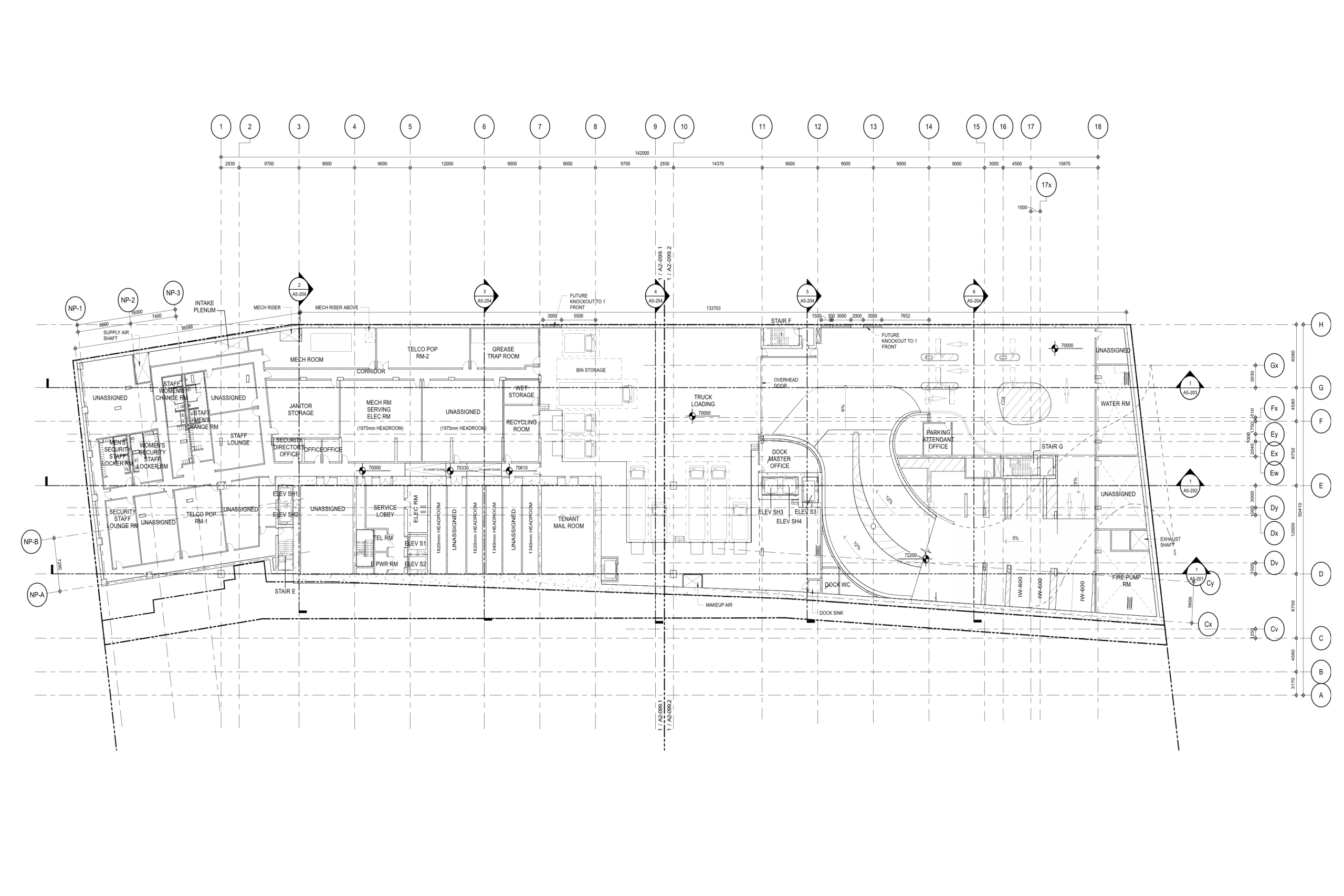

Overall Level P2 plan for CIBC Square
Overall Level P2 plan used to coordinate below-grade planning and circulation relationships.
03 / SELECTED CONTRIBUTIONS

Scope of Work

01

Construction Administration

Supported Phase 1 construction administration through RFI review, shop drawing review, Bluebeam Studio markups, and consultant coordination during active construction.
02

Transit & Tower Documentation

Assisted with Phase 2 SD, SPA, and DD documentation, developing Revit model and drawing content across tower, transit, service, and public-realm interfaces.
03

Submittals & Coordination

Supported consultant meetings, stakeholder communication, submittal tracking, and technical follow-through across a large commercial and transit-connected project team.
04 / CONSTRUCTION DRAWING STACK

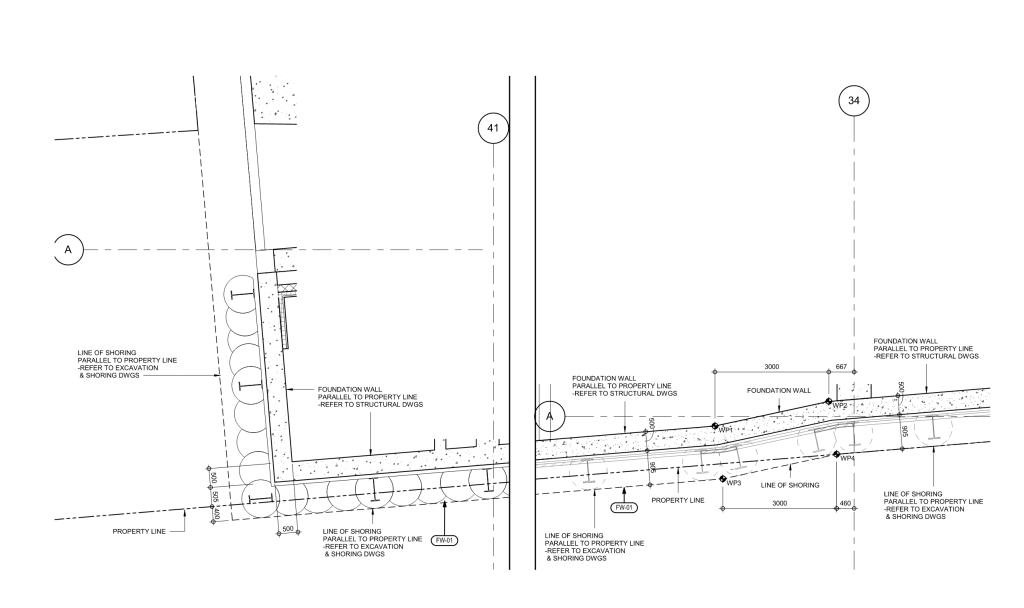

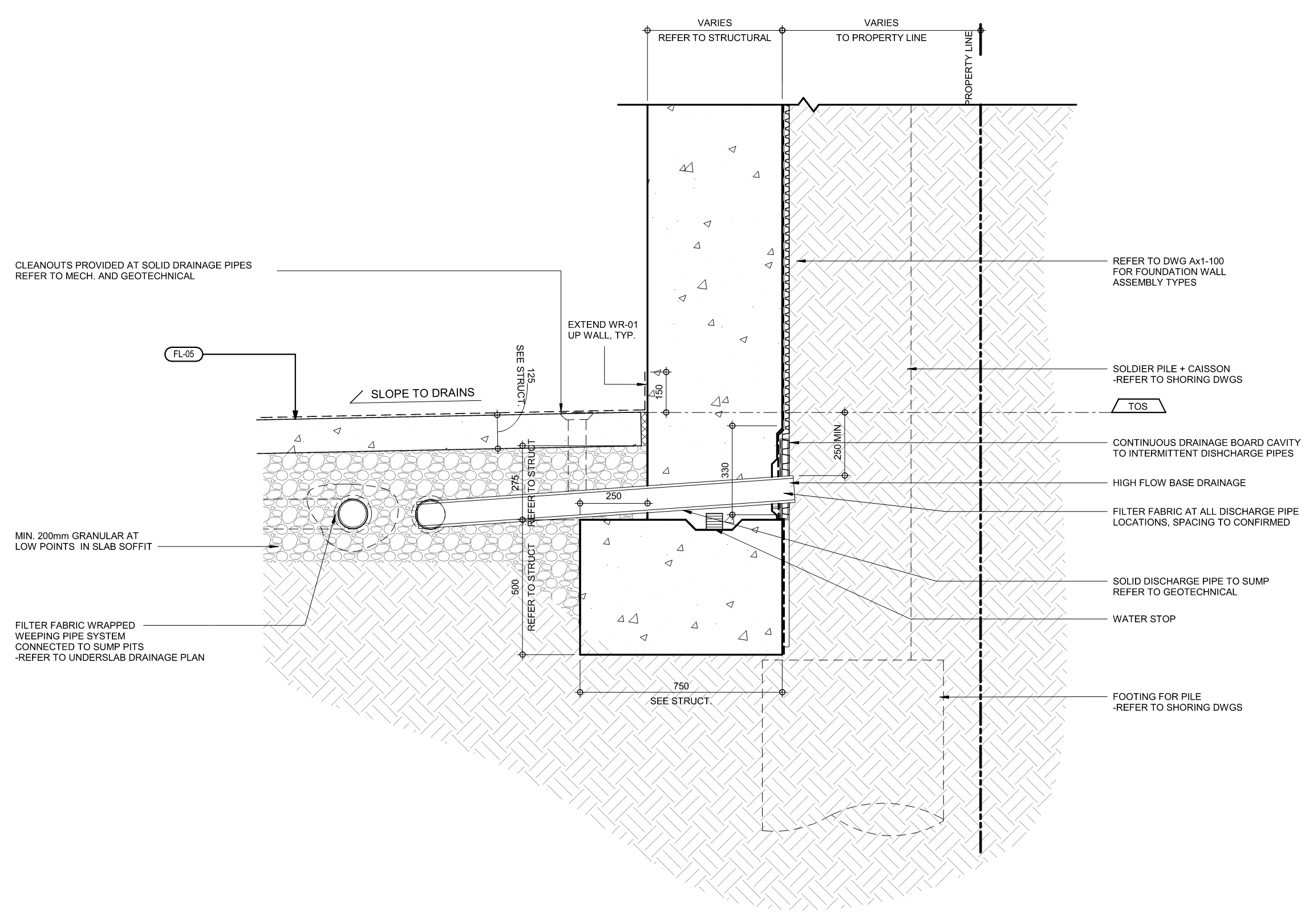

Construction Drawing Stack

Selected construction drawings are shown as a focused sequence, allowing the technical work to be read without turning the page into a long drawing scroll.

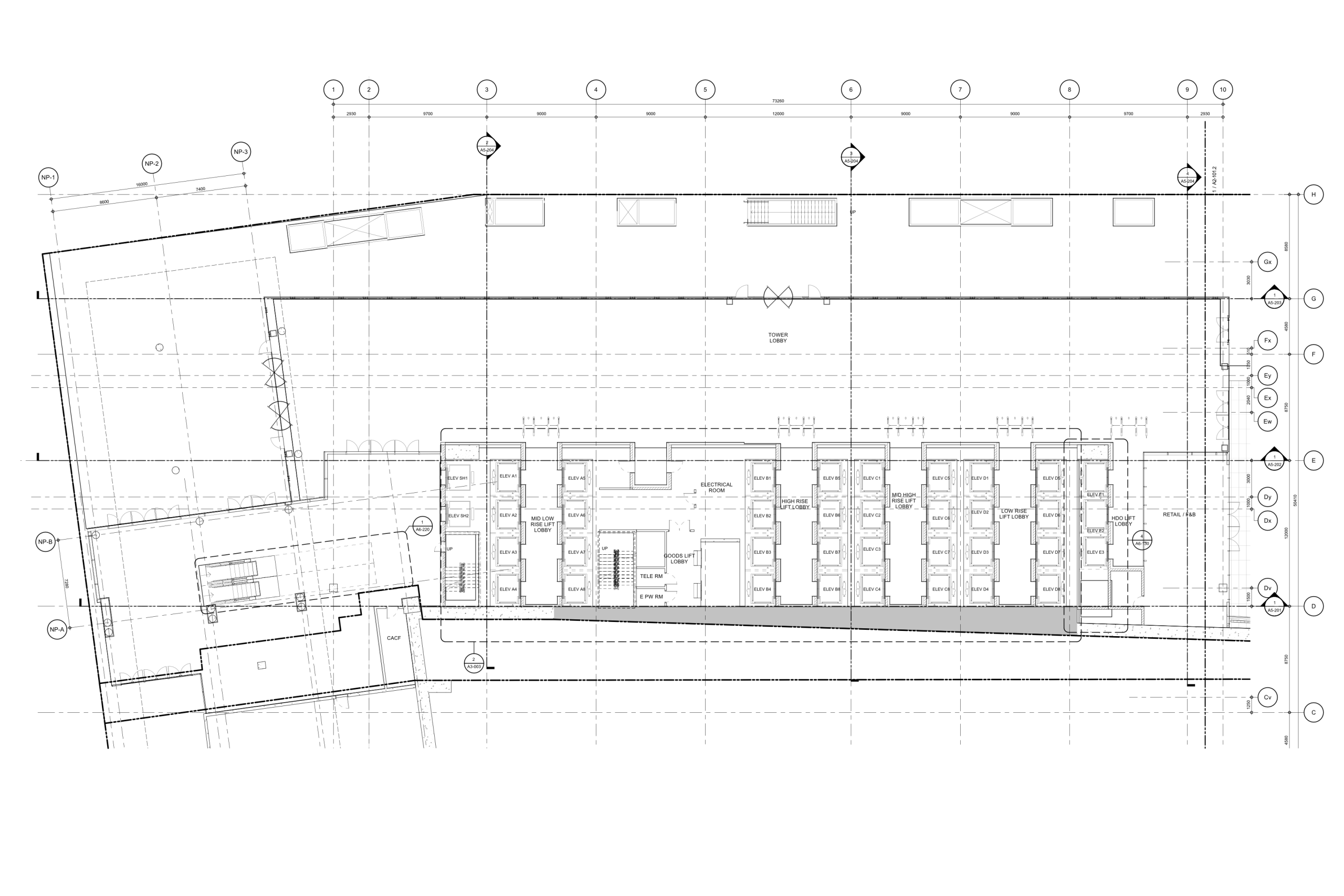

Level 01 west plan for CIBC Square
Level 01 west plan showing public, service, and circulation coordination.

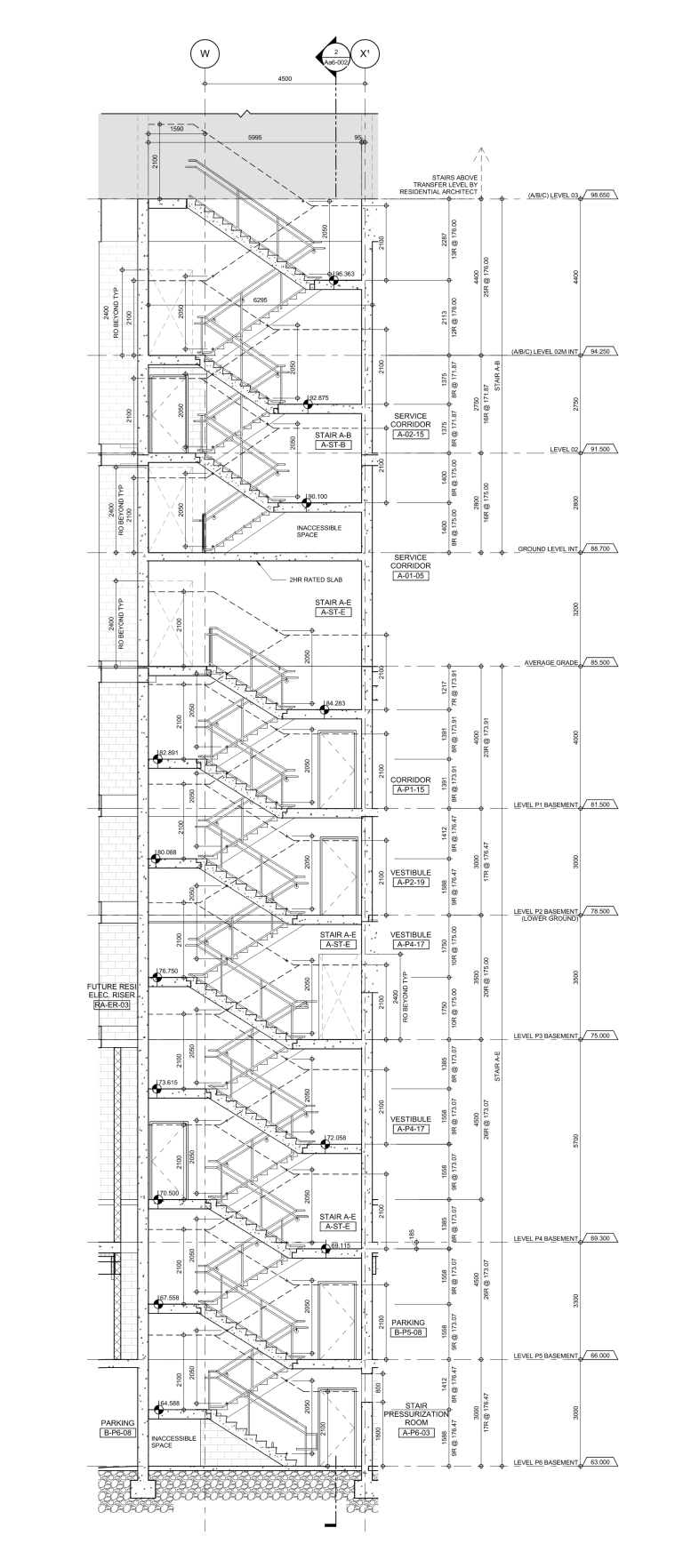

Escalator section drawing for CIBC Square

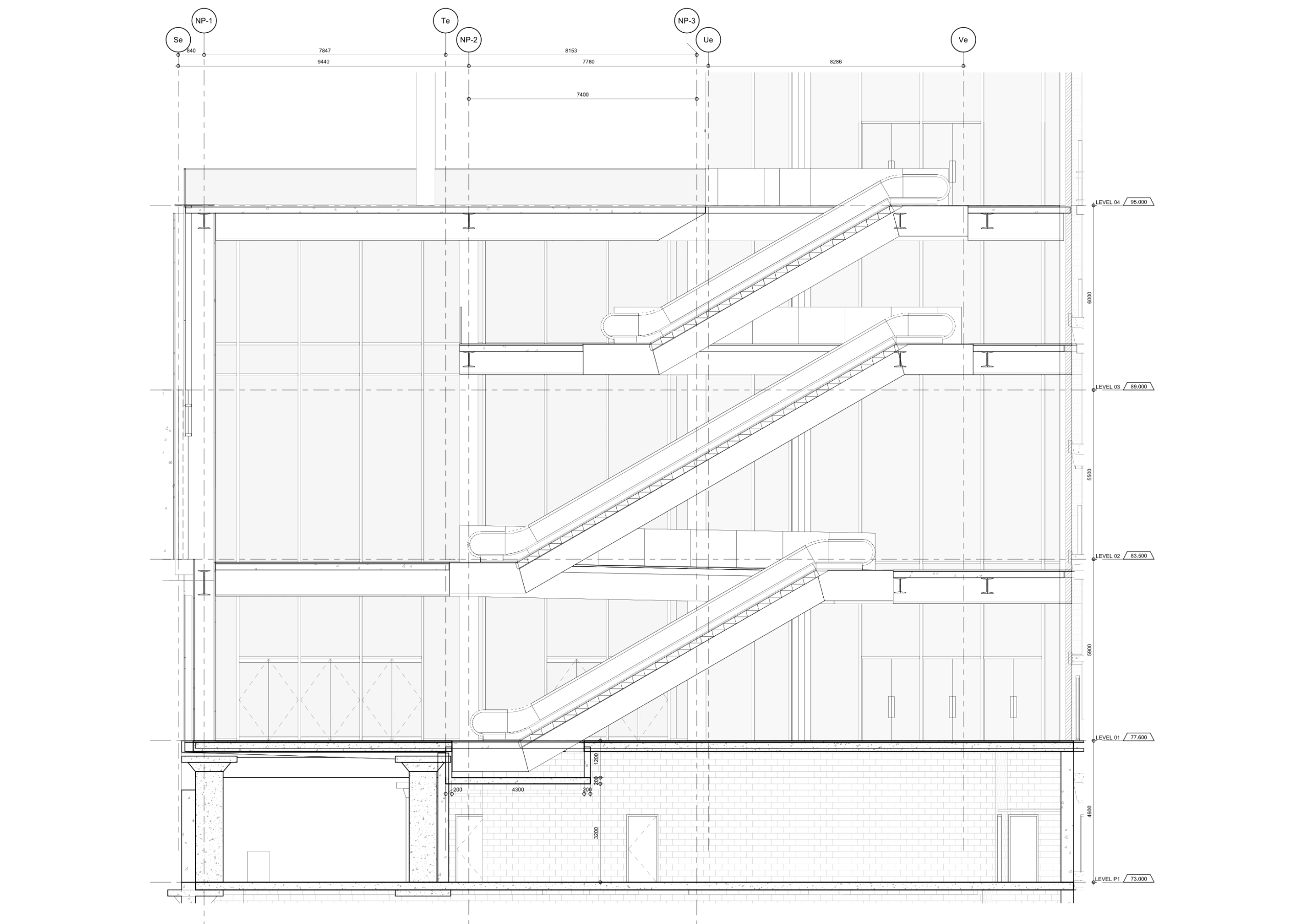

Escalator section documenting vertical circulation and sectional coordination.

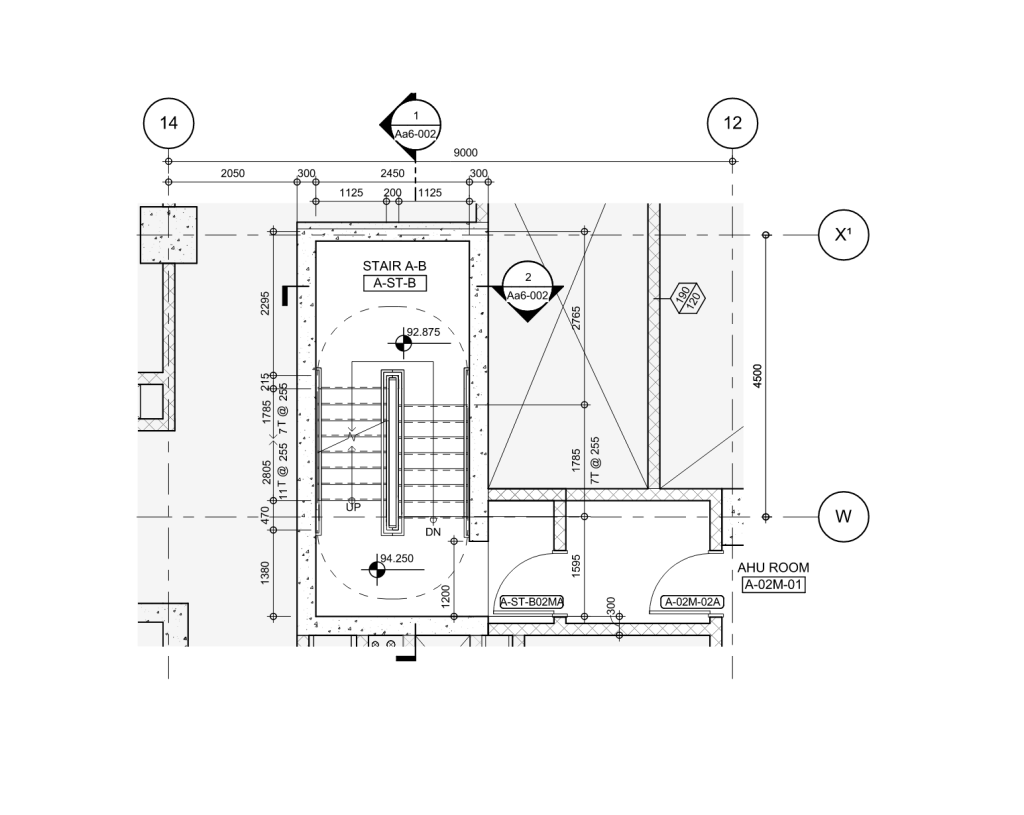

Escalator plan drawings for CIBC Square

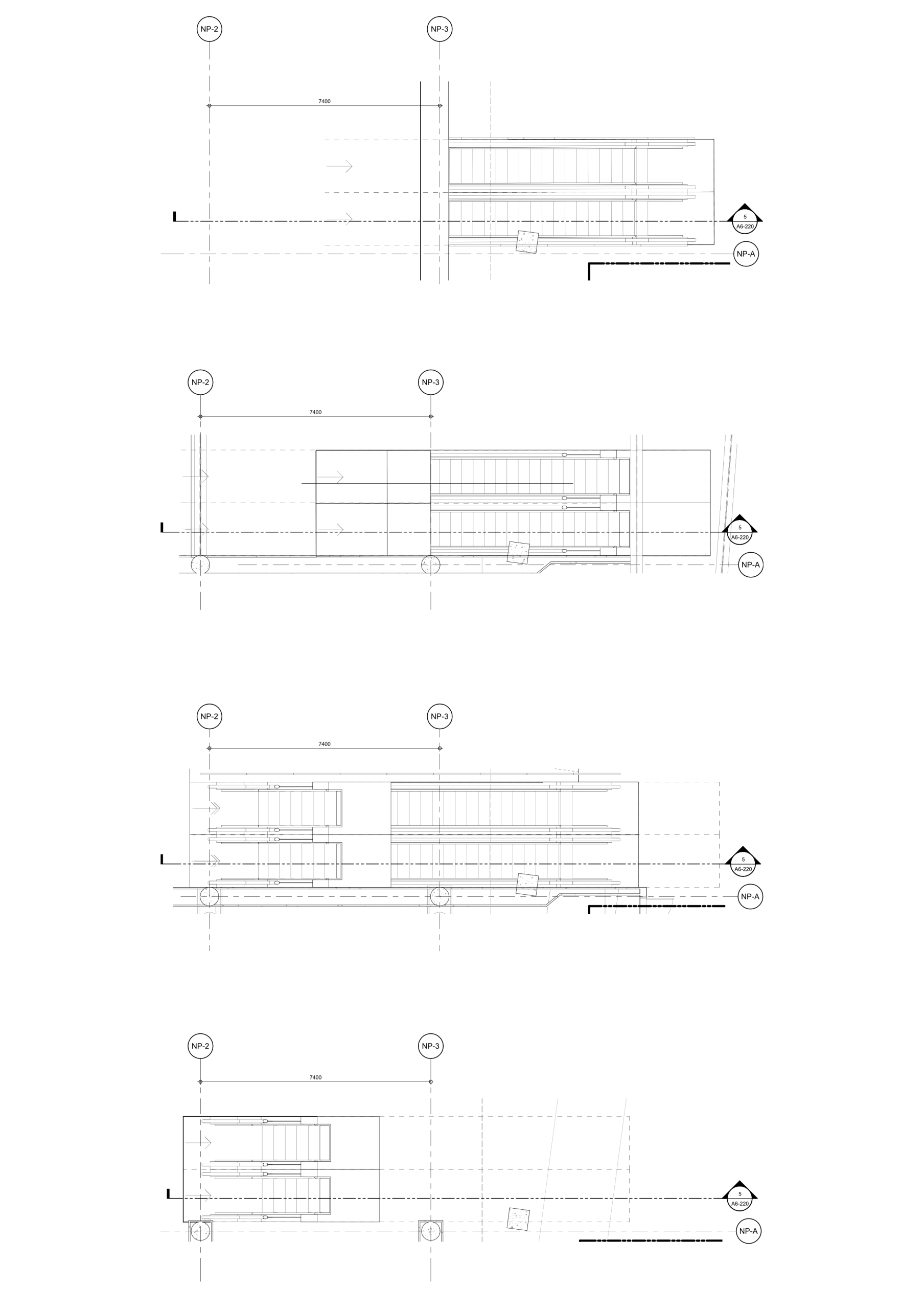

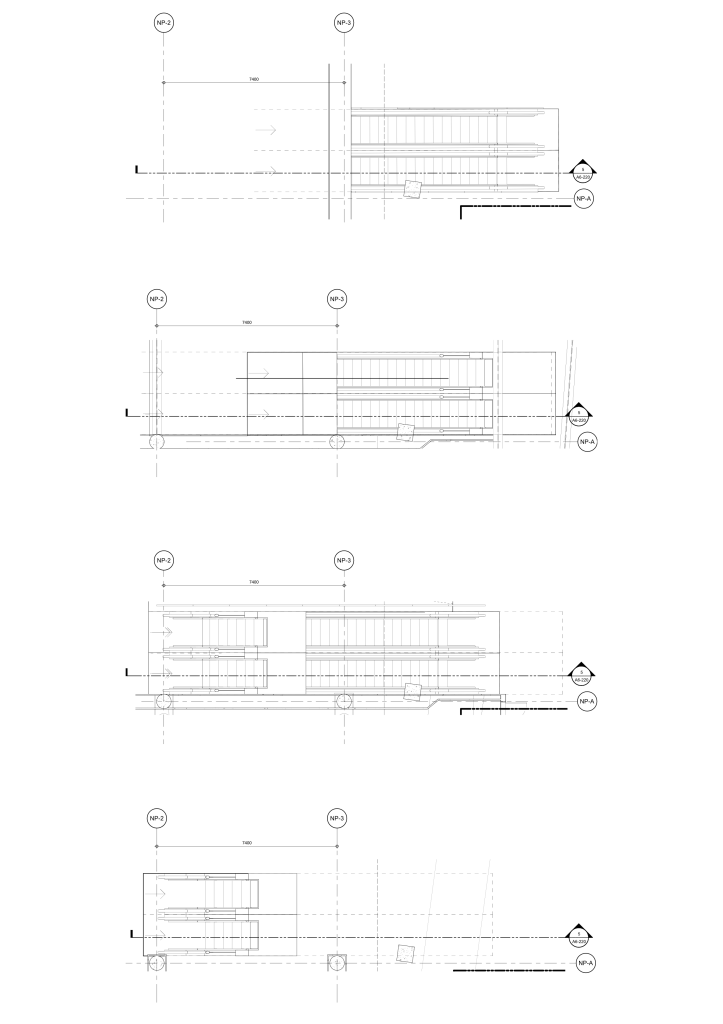

Escalator plan details coordinating vertical circulation across levels.
Security staff washroom partial plans for CIBC Square

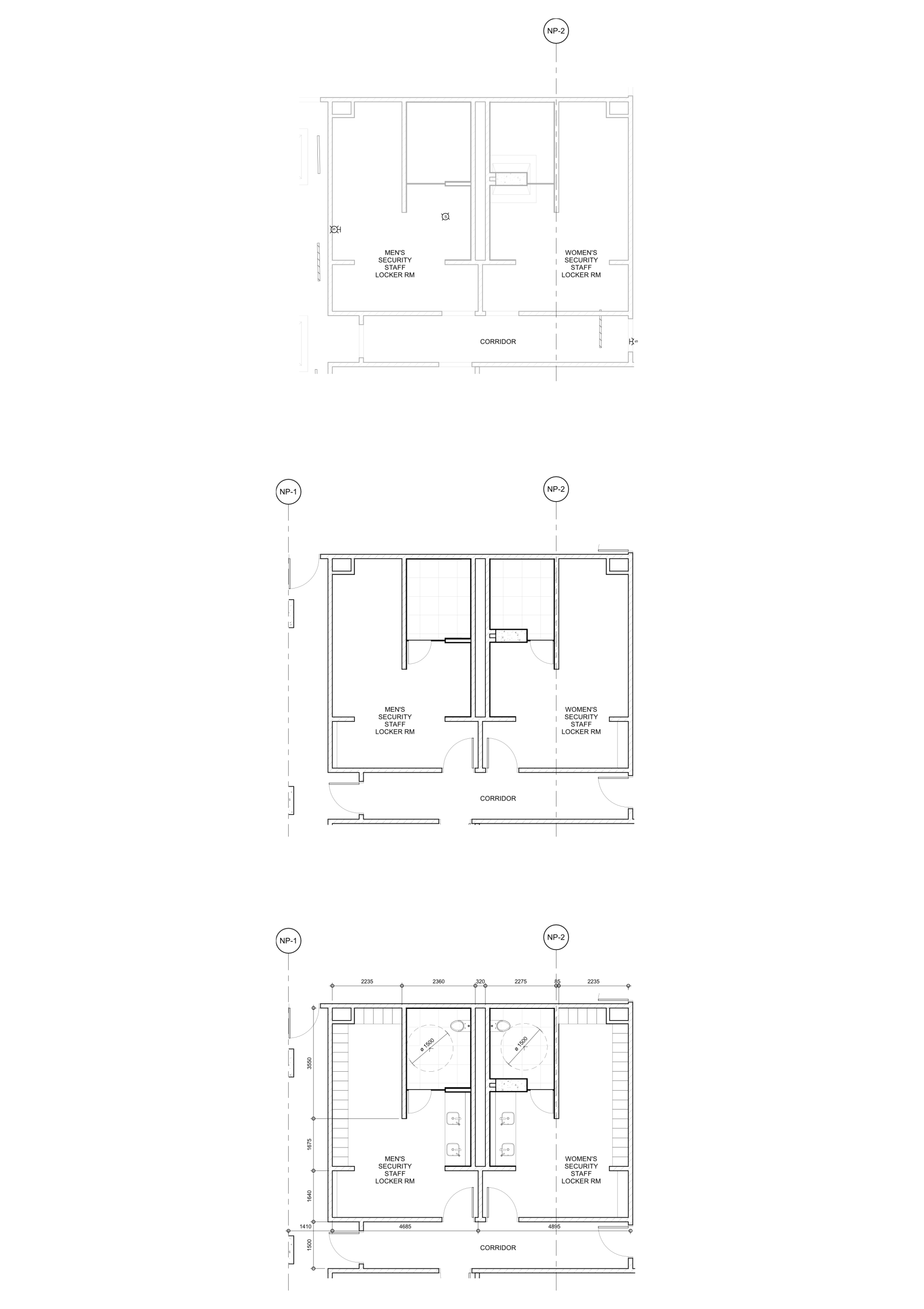

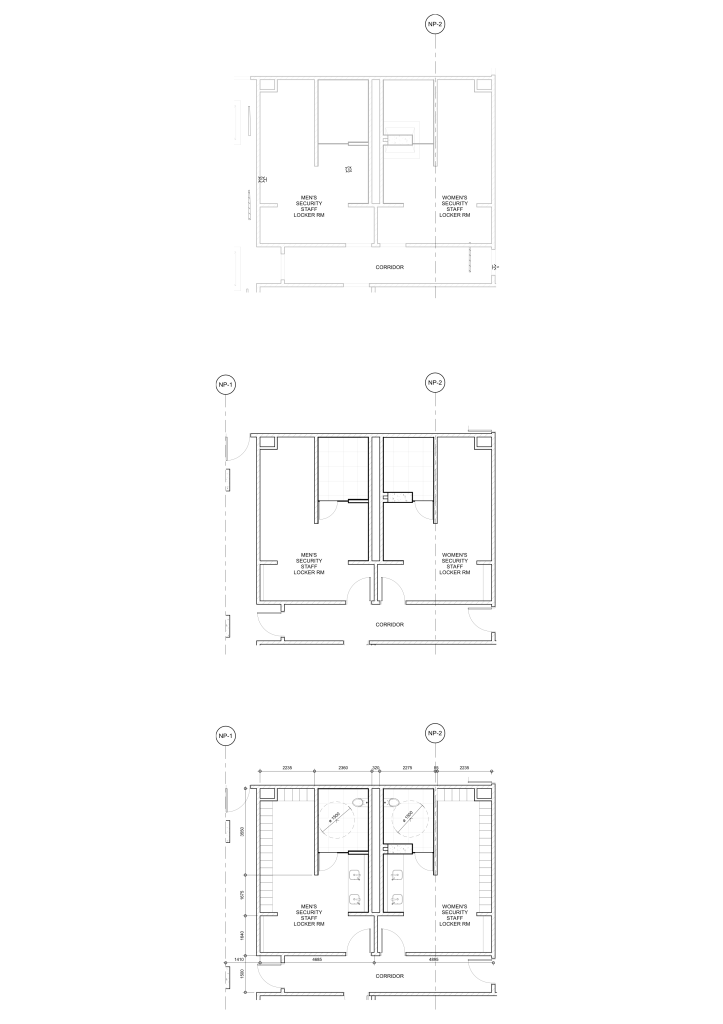

Partial plans documenting service-area coordination and washroom layout.
05 / SITE RECORD

From Drawing to Site

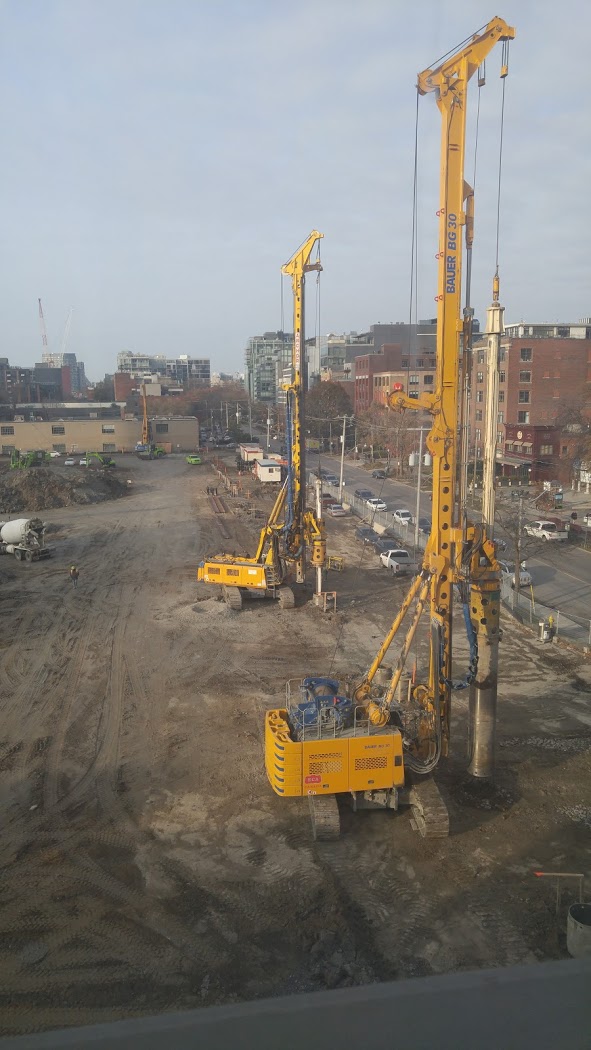

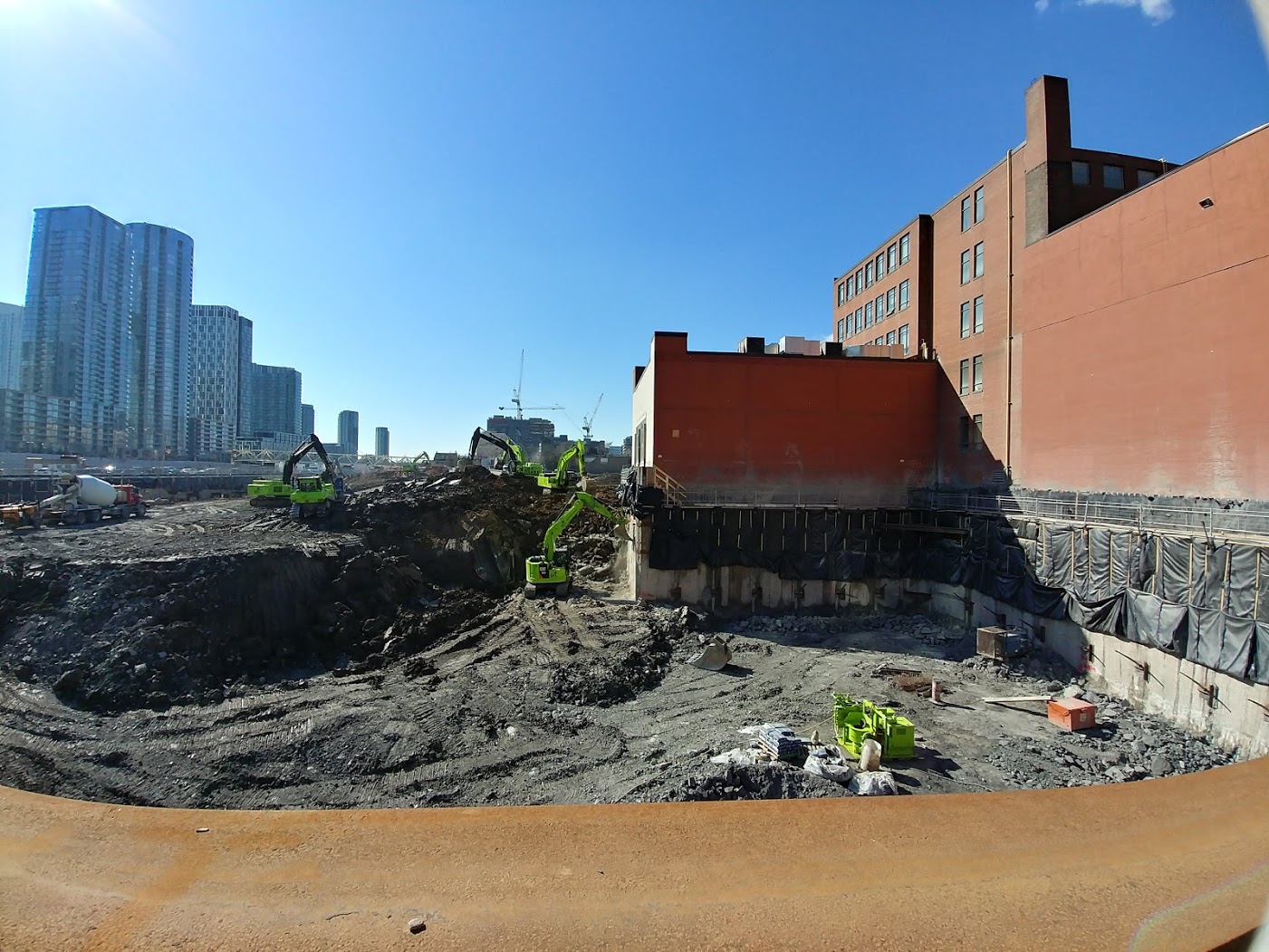

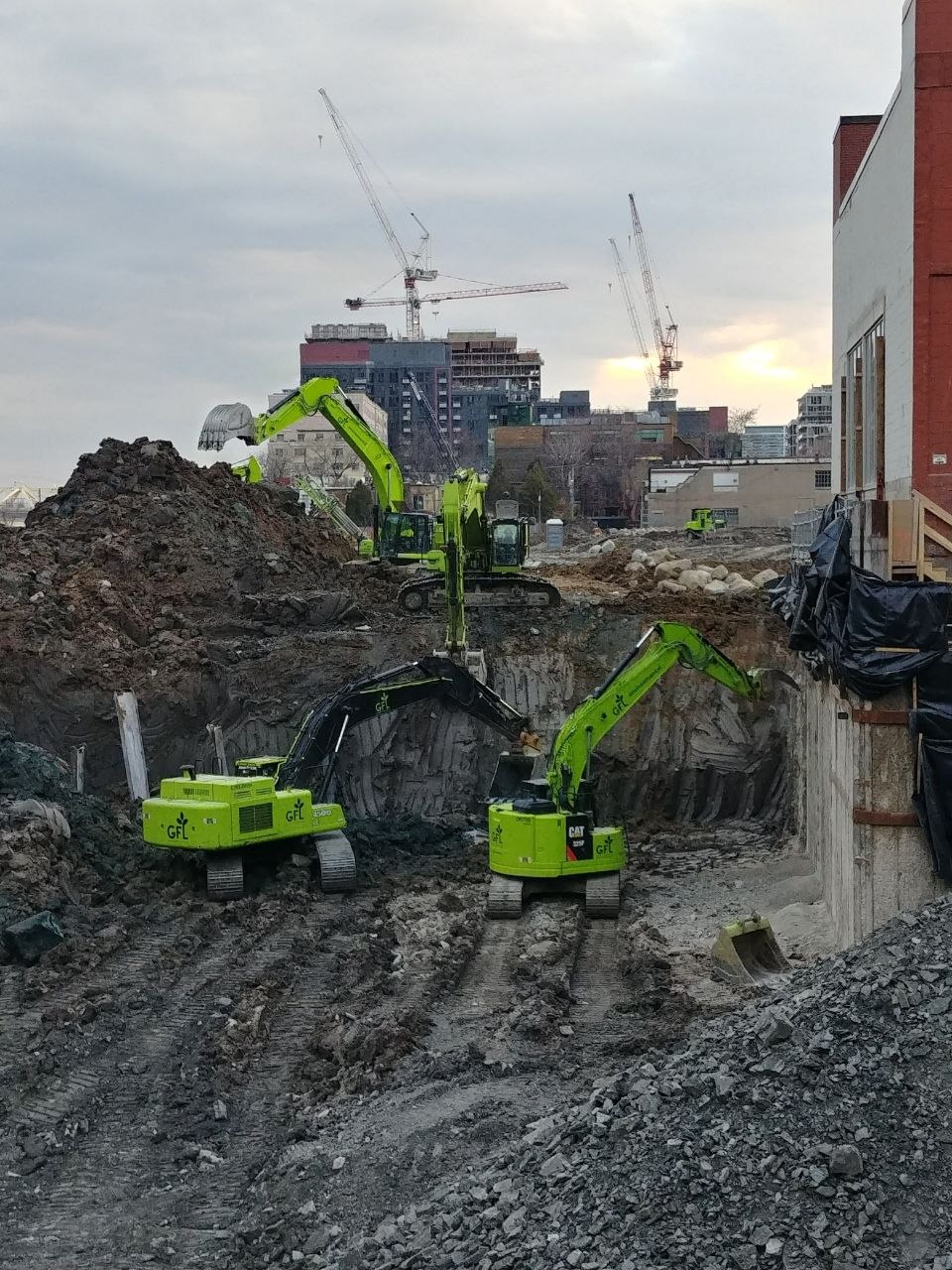

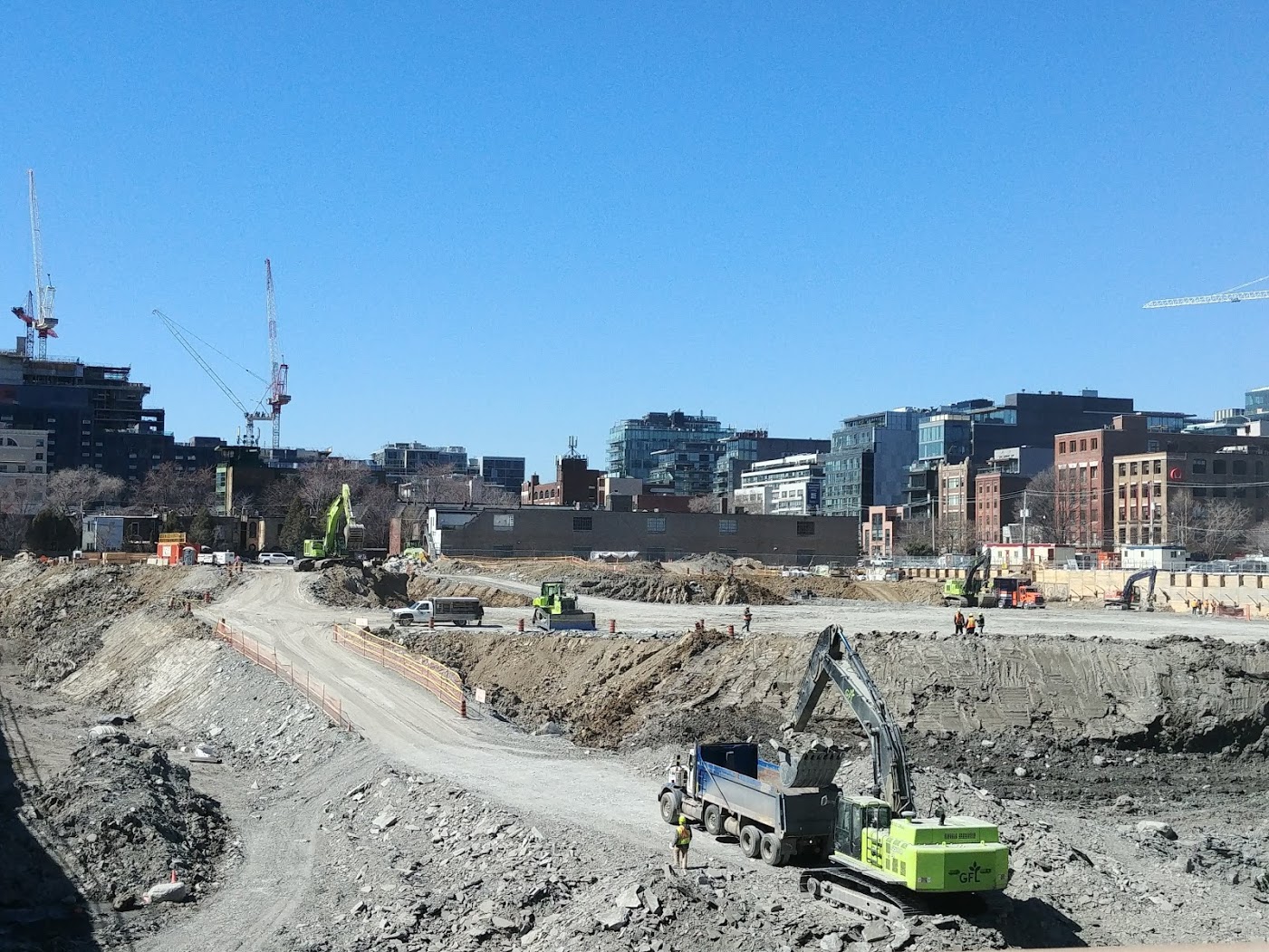

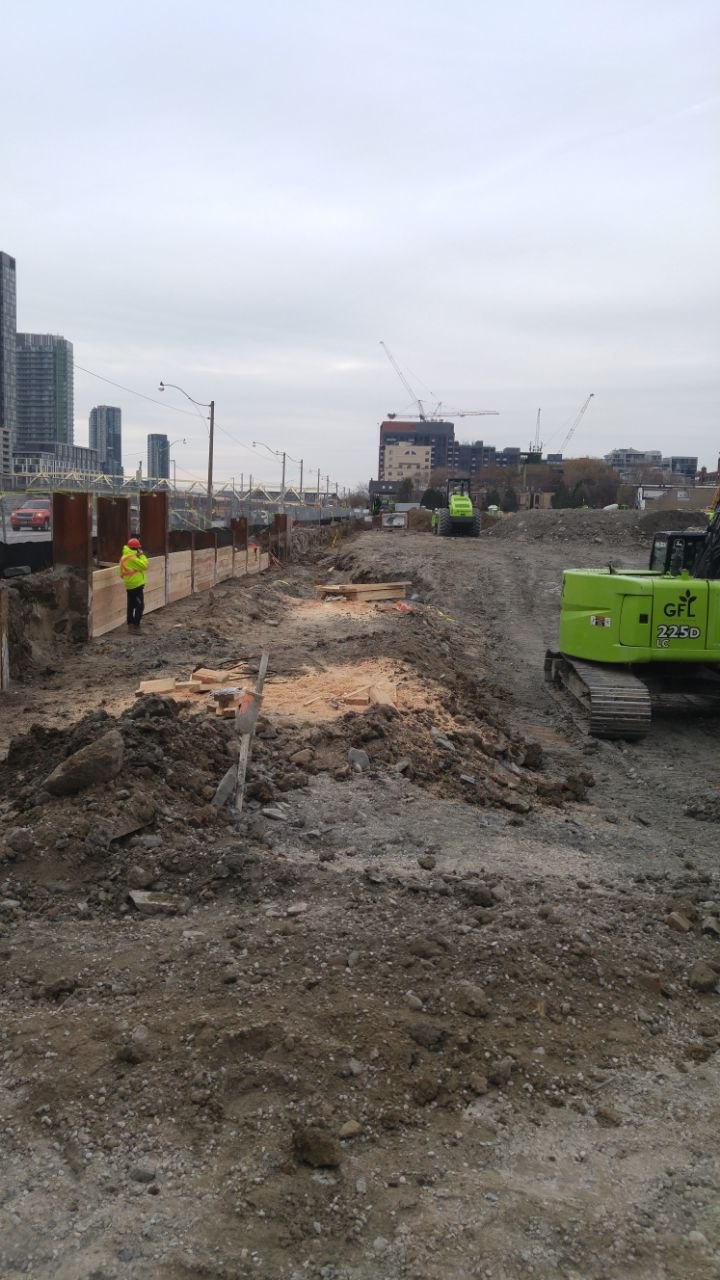

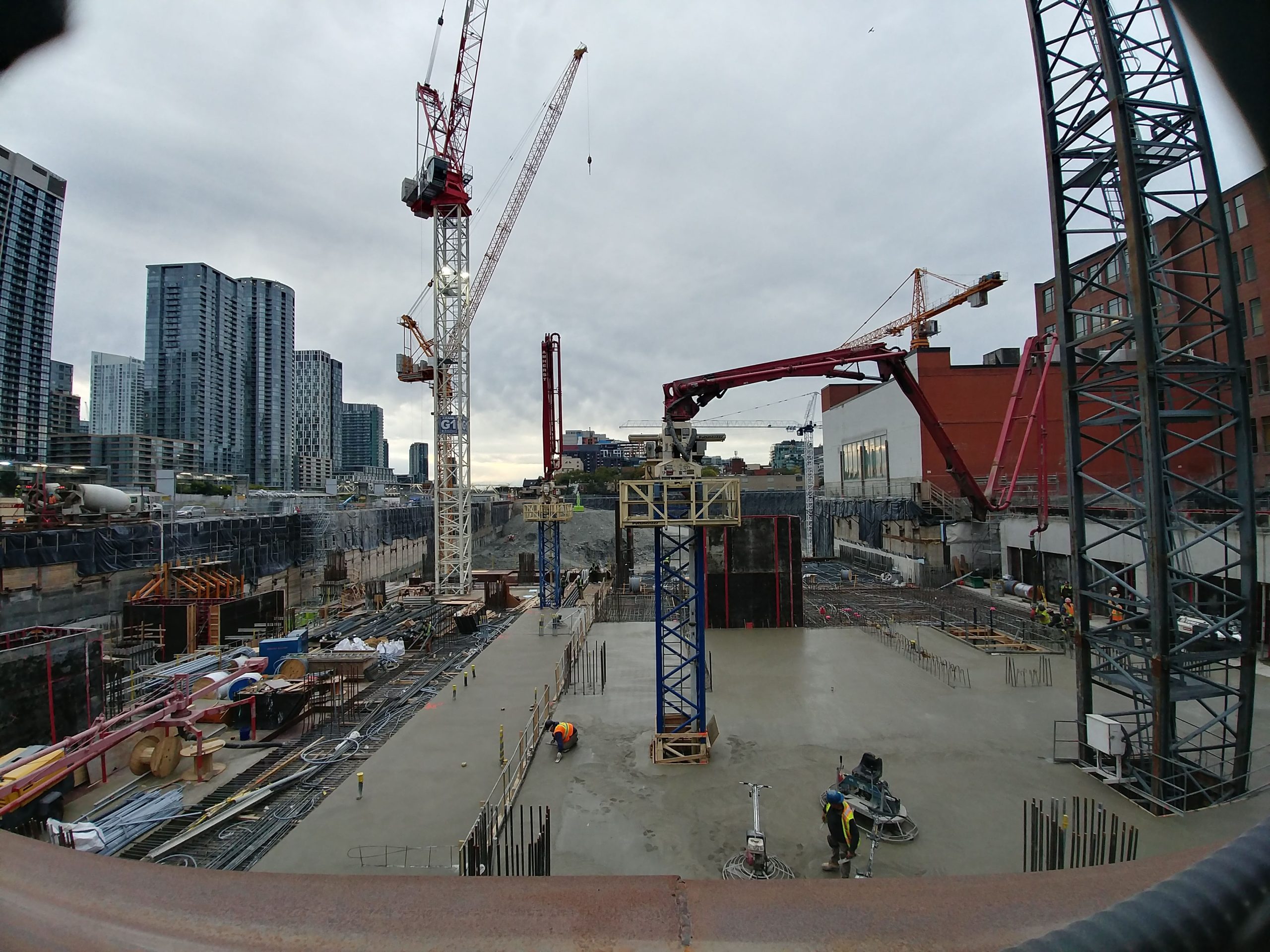

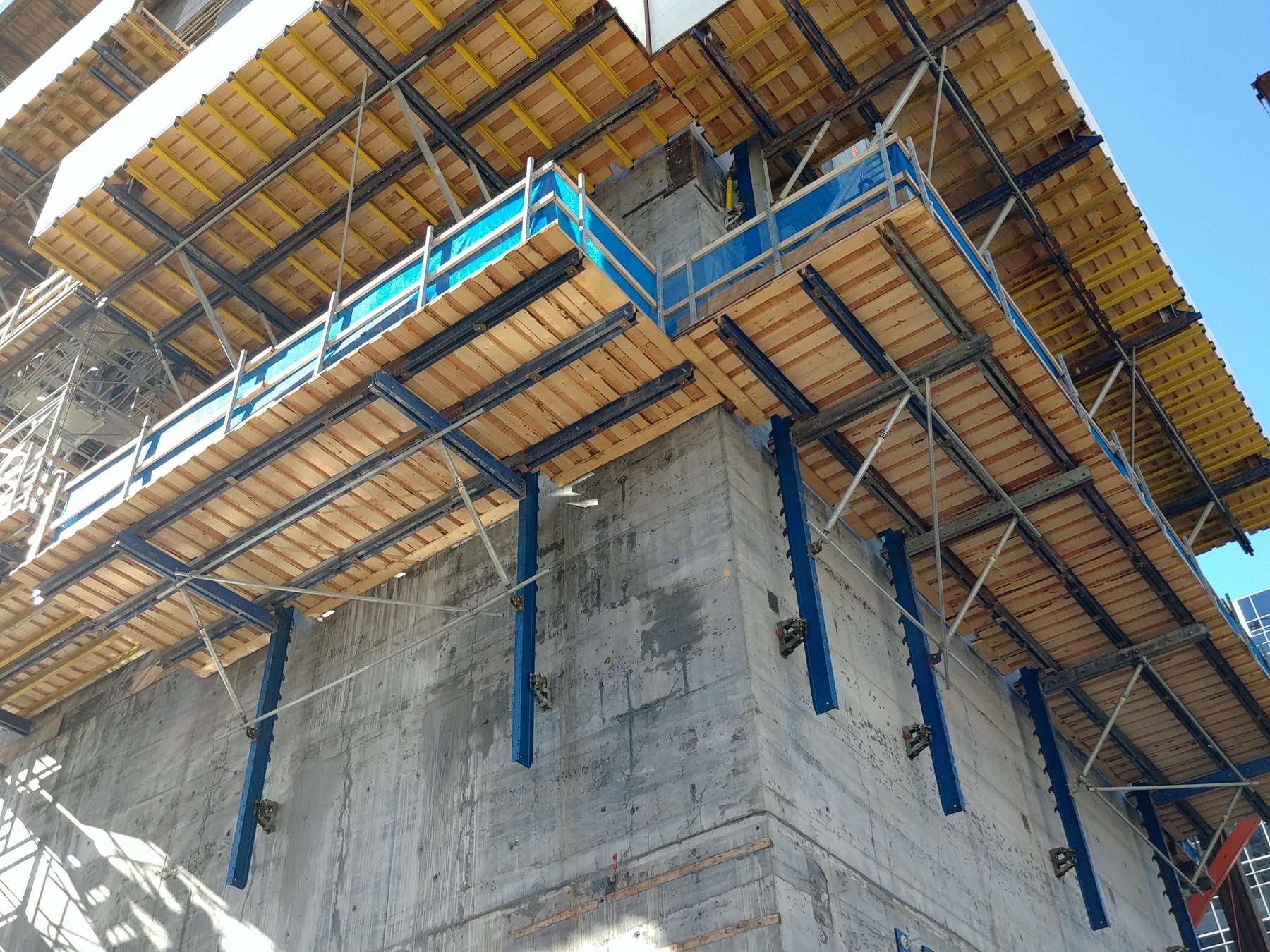

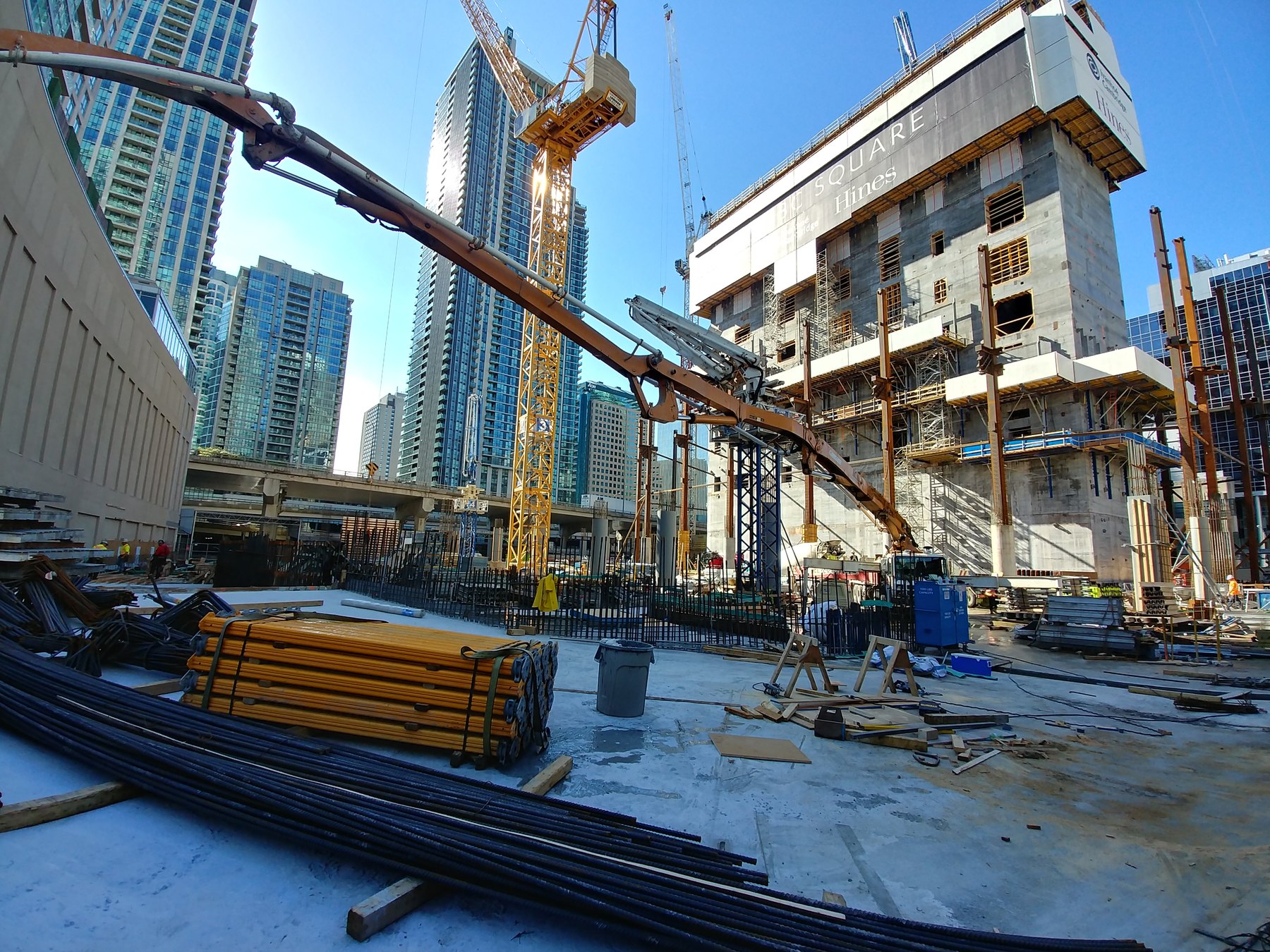

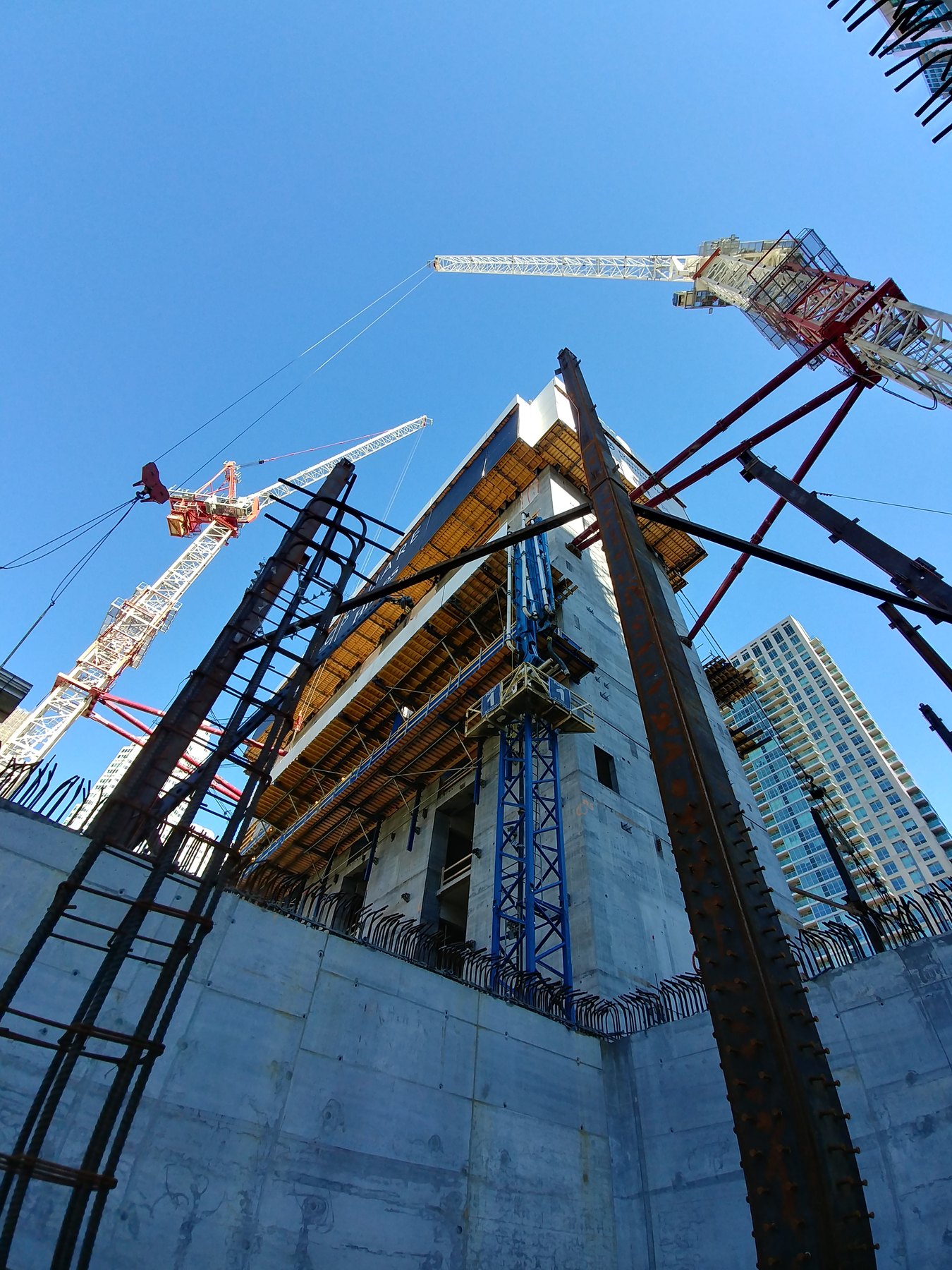

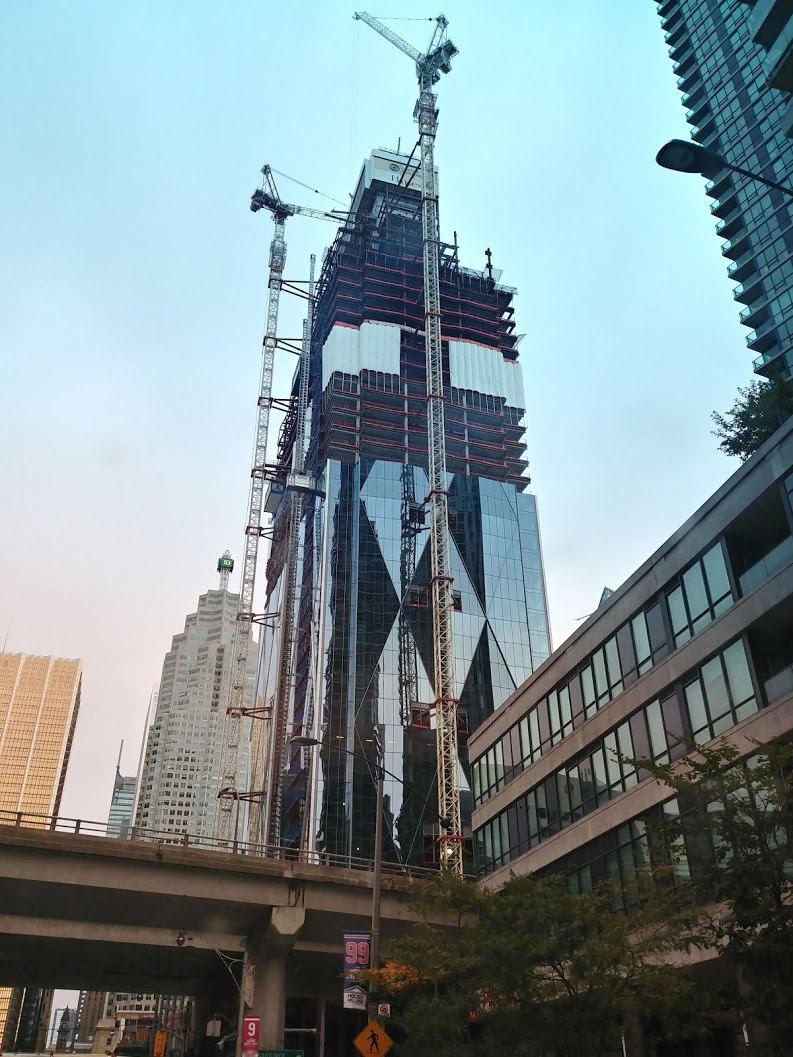

Selected construction and site photographs record the project’s translation from coordinated drawing sets into built work.
06 / EXHIBIT INDEX

Image and drawing Index

A compact index of the drawings and images shown throughout this project page.
