Built · Commercial, Mixed-Use, Residential

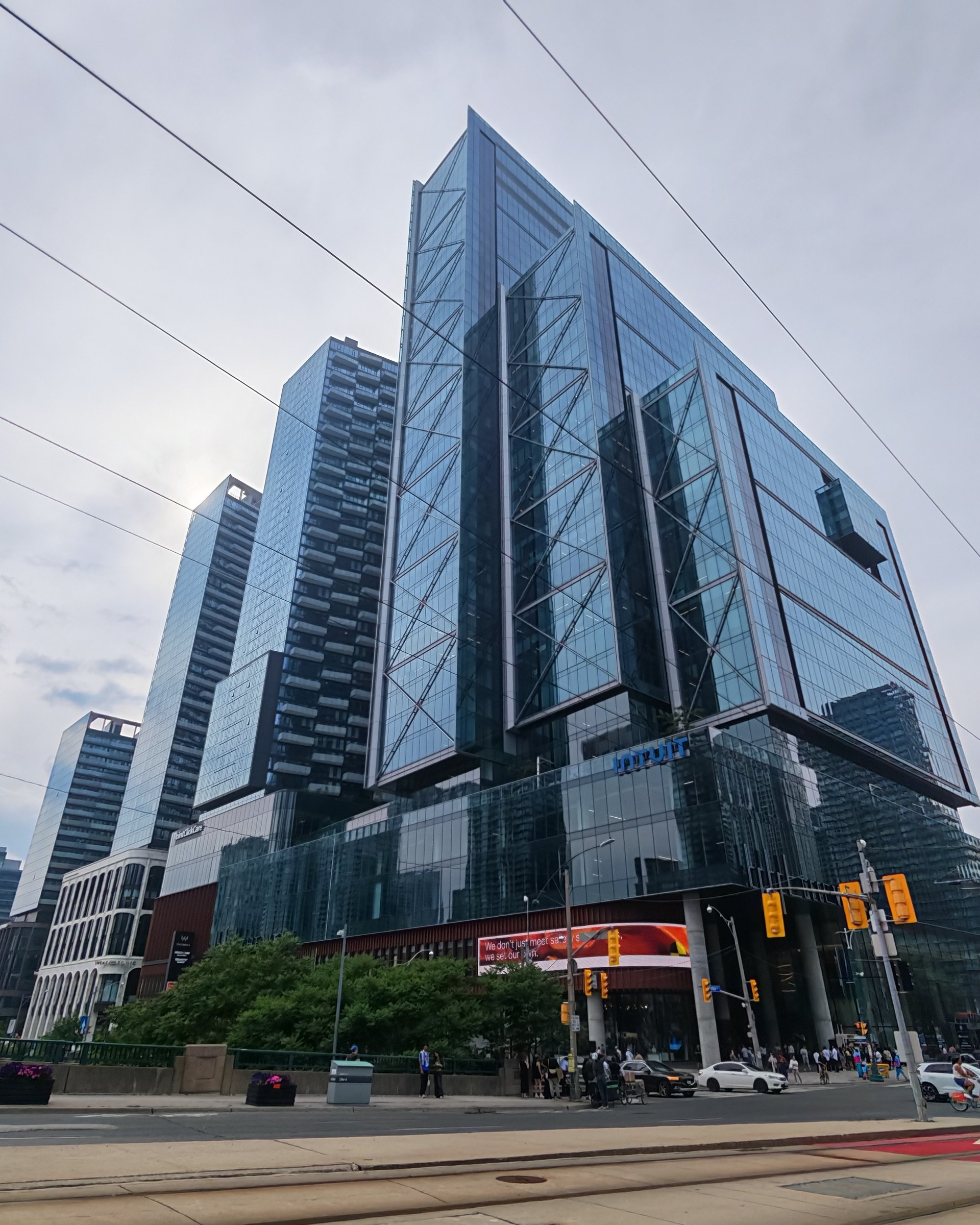

The Well

LOCATION
Toronto, Ontario
FIRM
Adamson Associates Architects
ROLE
Architectural Graduate
YEARS INVOLVED
2016–2018
PROJECT PHASES
SD · SPA · DD · CD
VIEW FIRM PROJECT PAGE
01 / PROJECT ORIENTATION

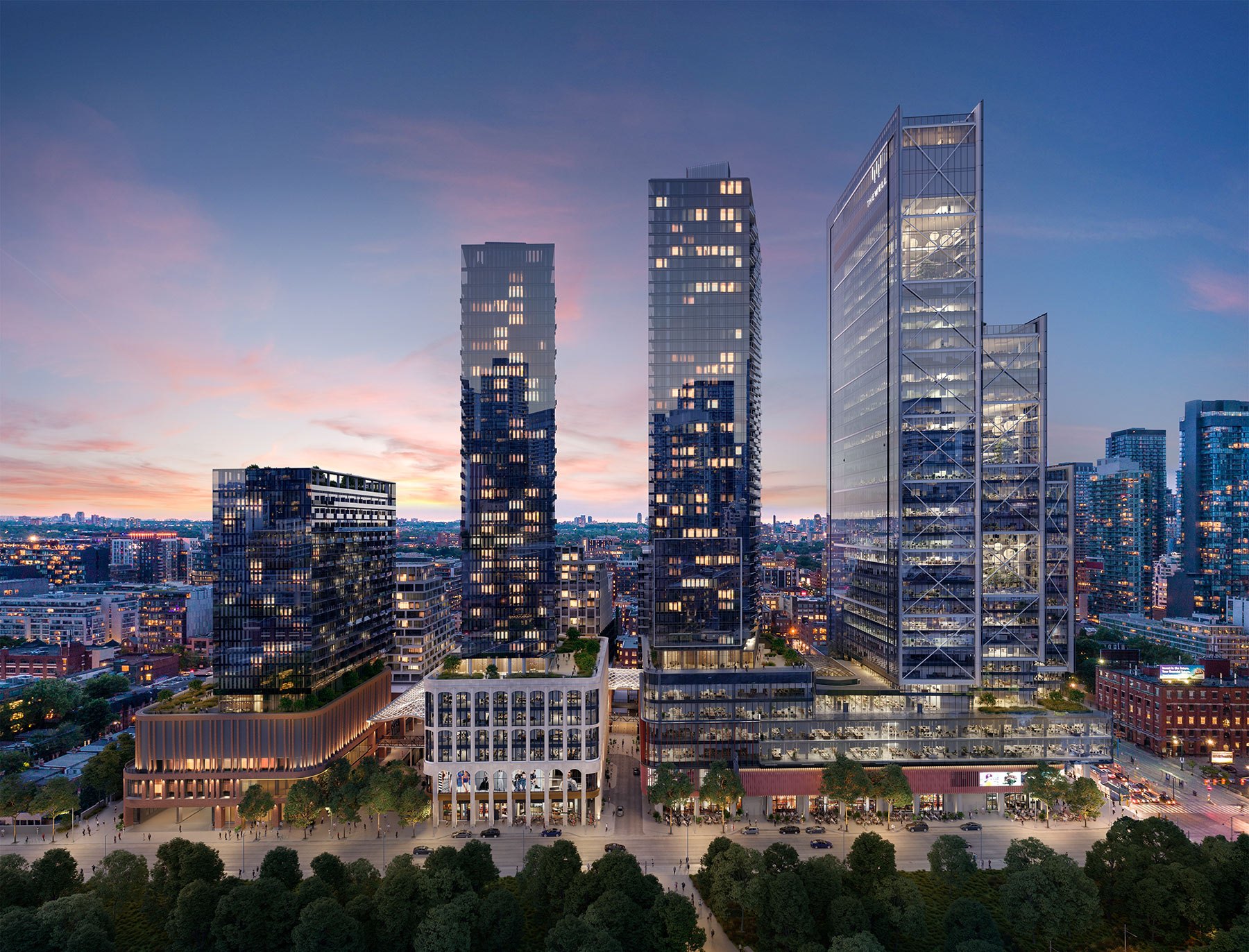

A seven-building mixed-use urban development spanning more than 7.5 acres in downtown Toronto, bringing together office, residential, retail, leisure and public space.

SCALE
4,475,000 sf / 415,740 m² · Seven buildings · 7.5+ acres
SOFTWARE
Revit · AutoCAD · Bluebeam
02 / PRIMARY DRAWING

Reading the project through plan, section, and elevation

A selected architectural drawing anchors the project’s scale, organization, and coordination before the technical sequence begins.

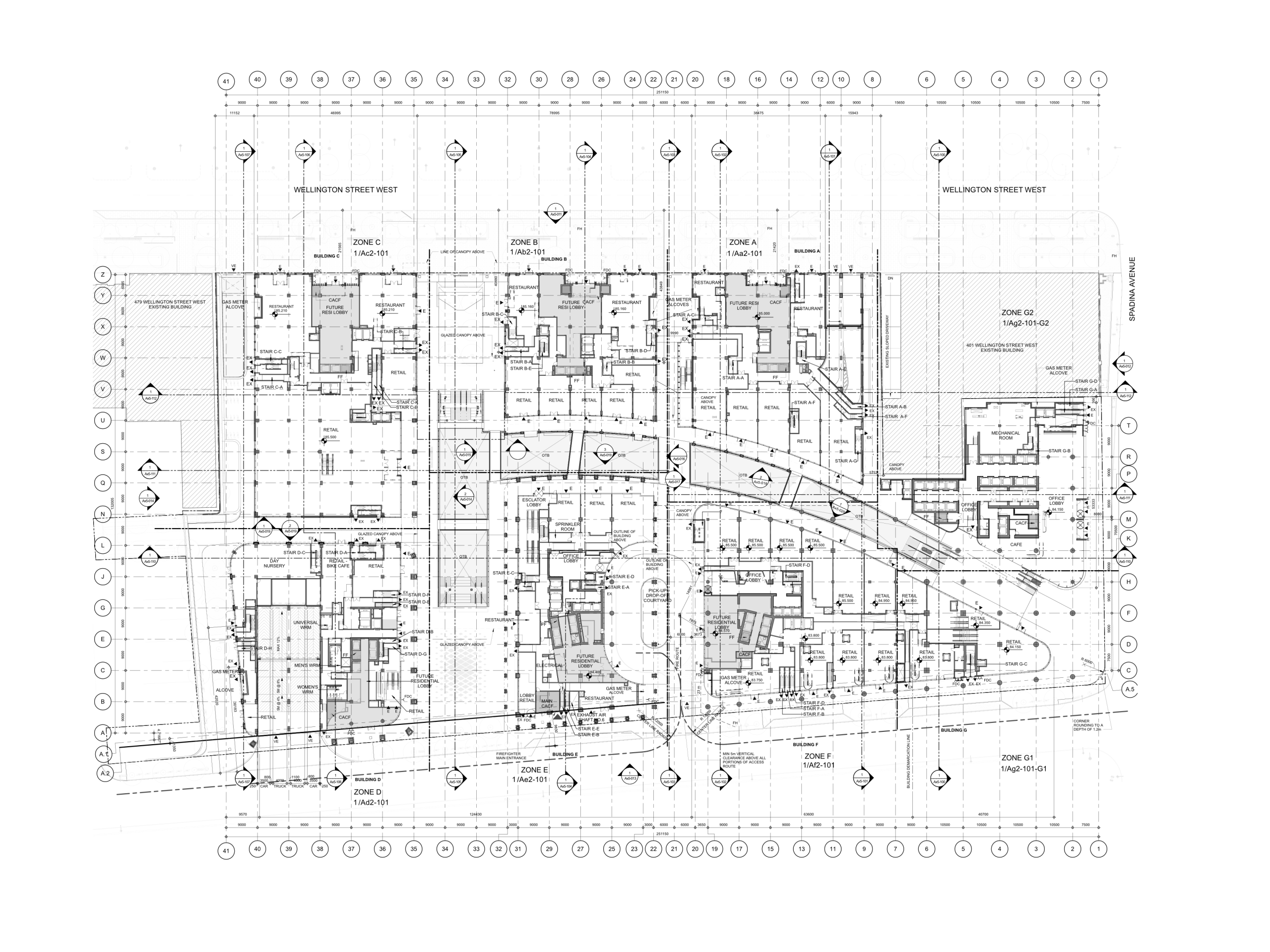

Ground floor coordination plan for The Well
Ground floor coordination plan showing podium interface, circulation, and public-facing program relationships.
03 / SELECTED CONTRIBUTIONS

Scope of Work

01

Parking Garage & Vertical Circulation

Supported design development and construction documentation for the below-grade parking garage, including parking layouts, ramps, stairs, egress routes and coordination across multiple levels.
02

Ground Floor & Podium Coordination

Developed and coordinated ground-floor architectural documentation, integrating consultant information and resolving interfaces between the podium, circulation and public-facing spaces.
03

BIM & Technical Coordination

Maintained Revit models and drawing sets, supported pile and consultant coordination, assisted with specifications and helped carry technical information consistently through SD, SPA, DD and CD.
04 / CONSTRUCTION DRAWING STACK

Construction Drawing Stack

Selected construction drawings are shown as a focused sequence, allowing the technical work to be read without turning the page into a long drawing scroll.
Second floor coordination plan for The Well

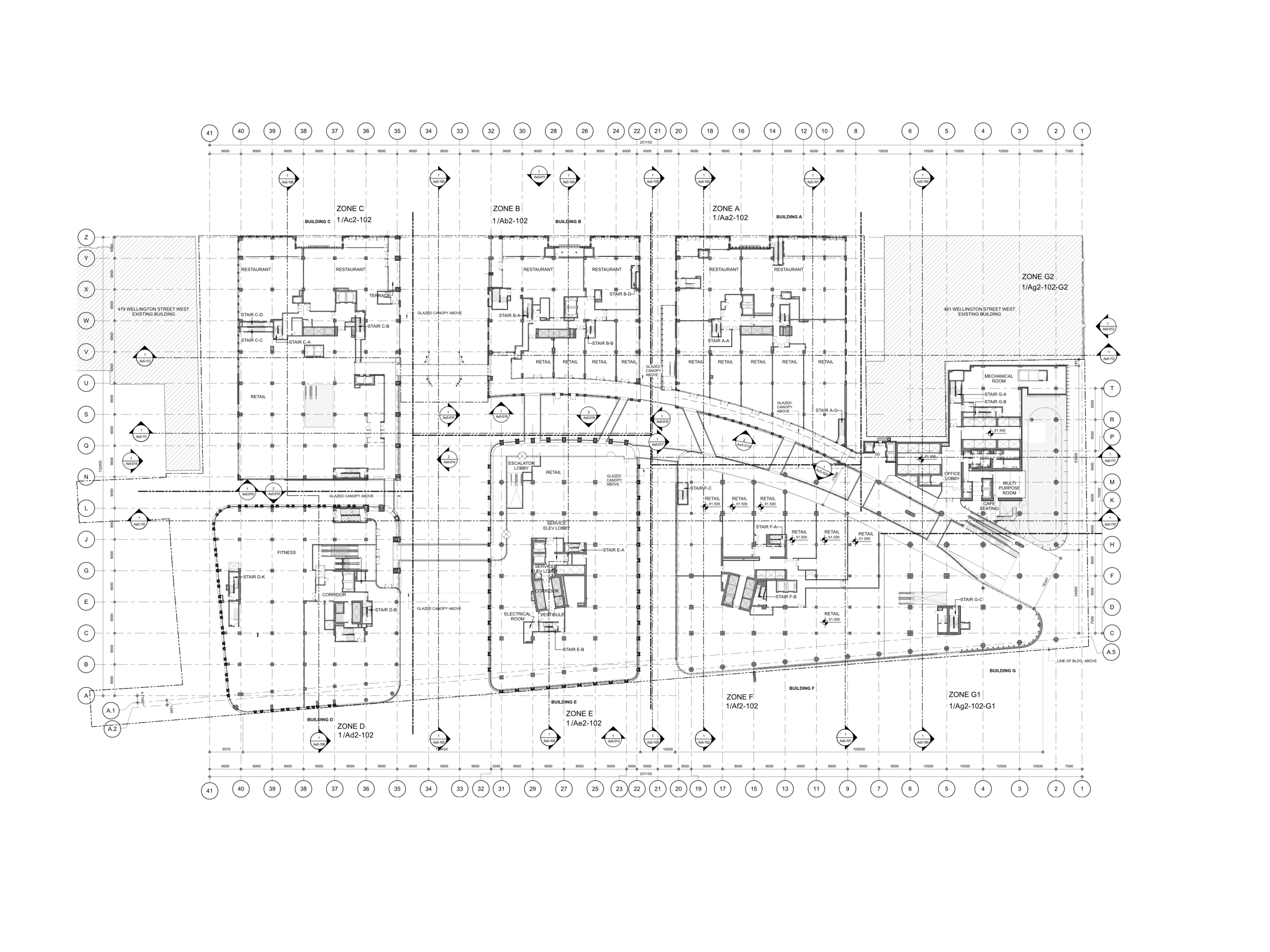

Second floor coordination plan showing upper-level circulation, podium relationships, and residential building interfaces.

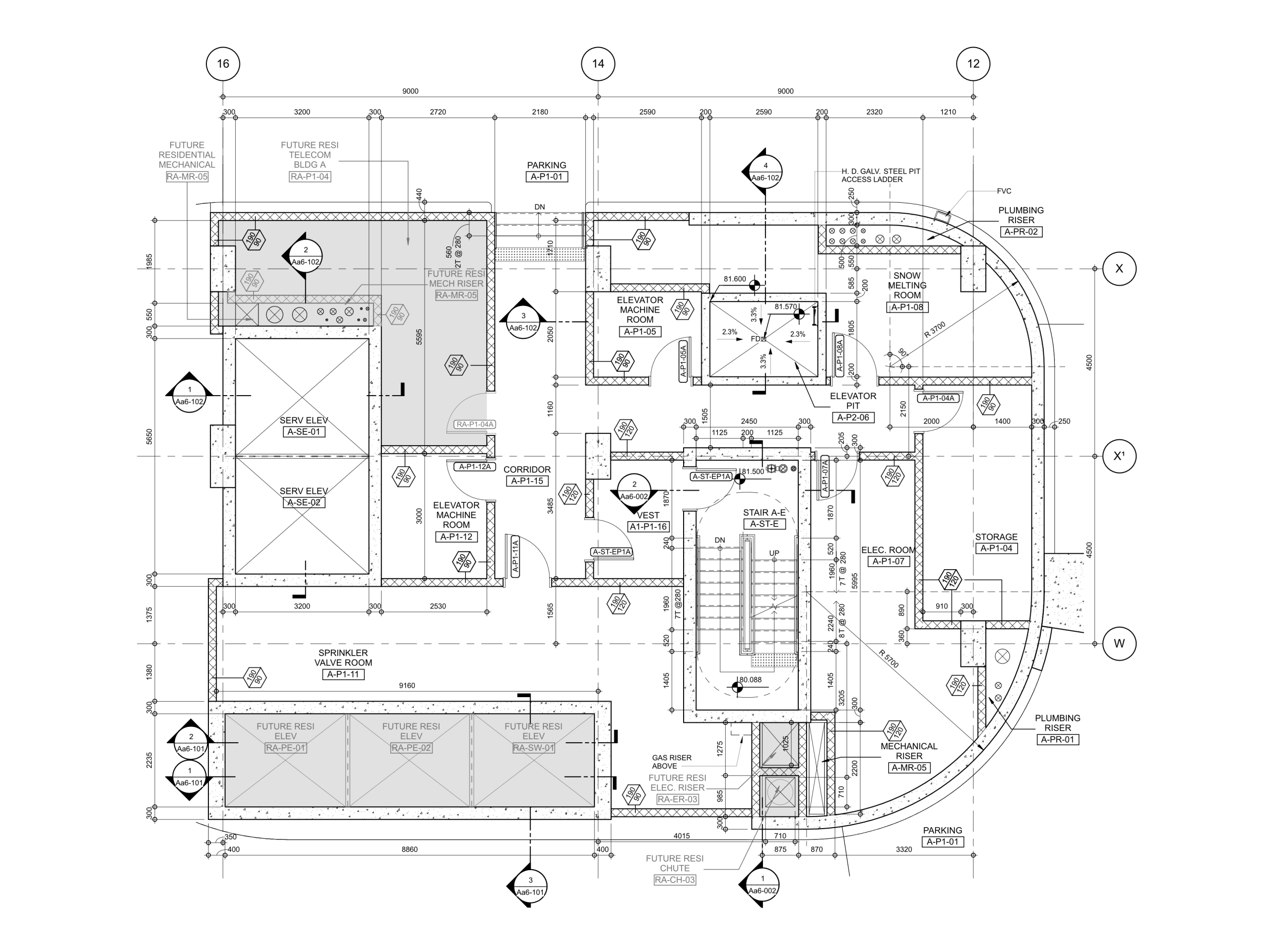

Plan detail coordination drawing for The Well
Enlarged plan detail used for localized architectural coordination.

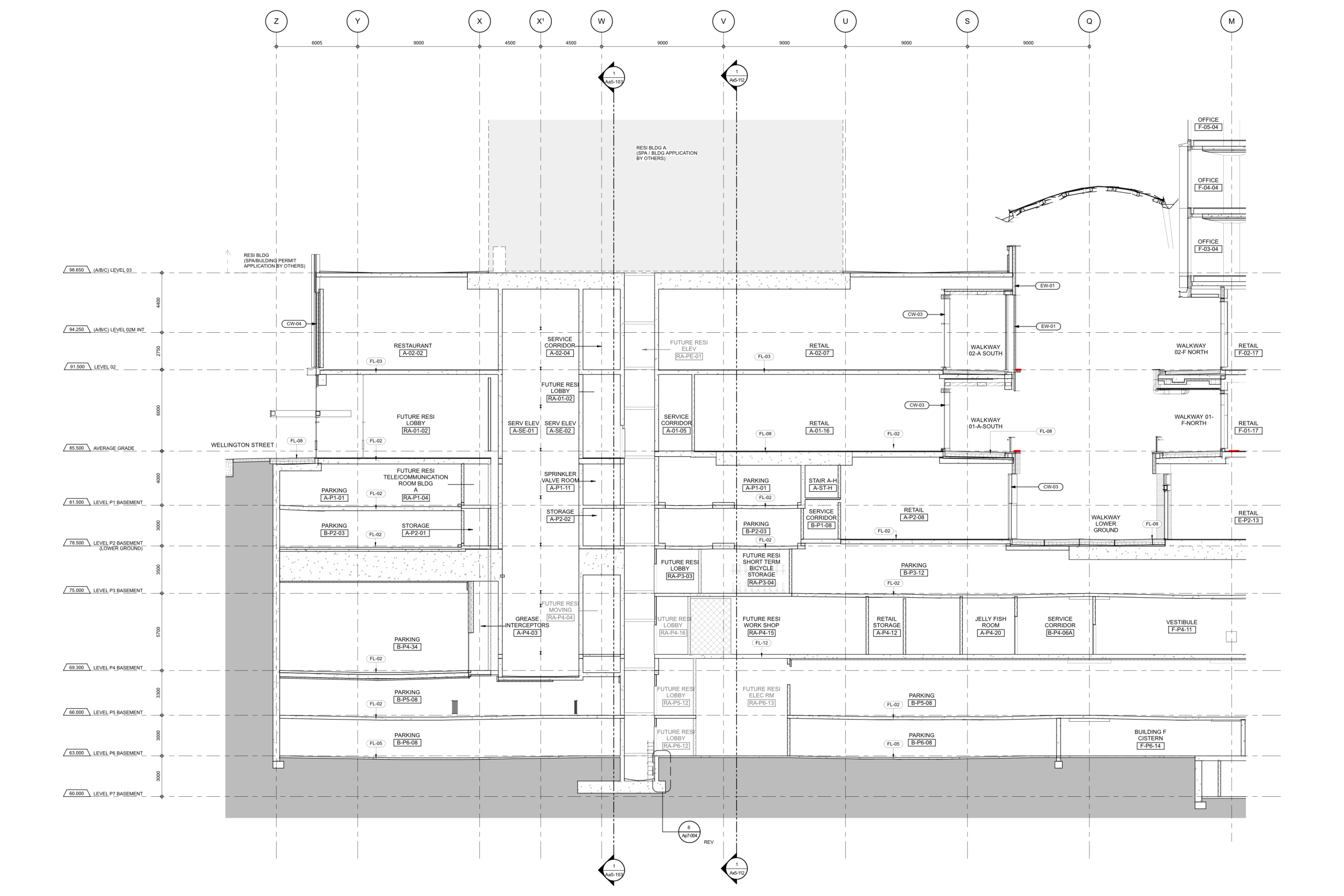

Building A section drawings for The Well
Building sections documenting floor relationships, envelope, and podium coordination.

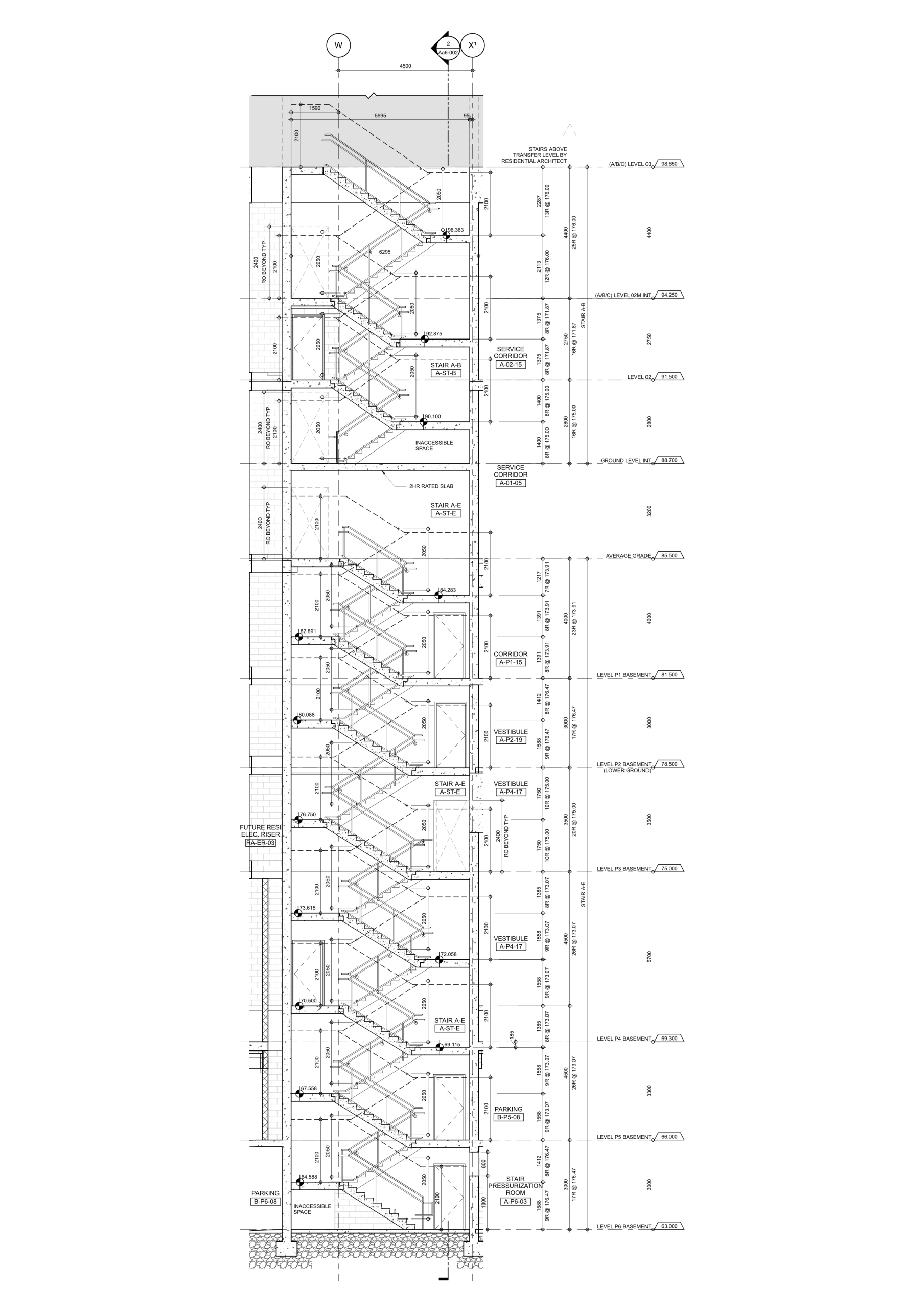

Stair section coordination drawing for The Well
Stair section clarifying vertical circulation and assembly coordination.
Building B southeast axonometric drawing for The Well

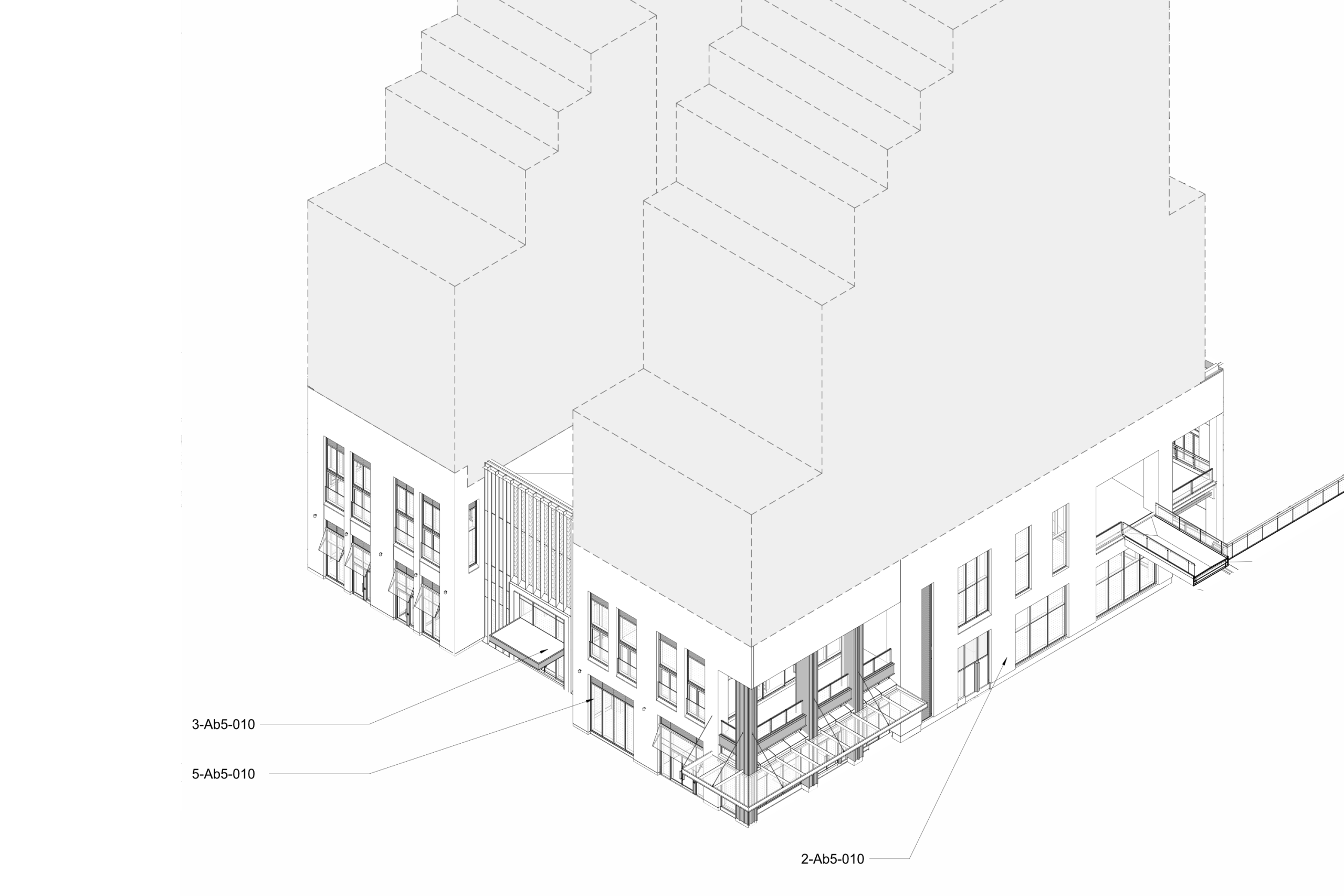

Axonometric view clarifying building massing and coordinated assembly relationships.
Building C stair isometric drawing for The Well

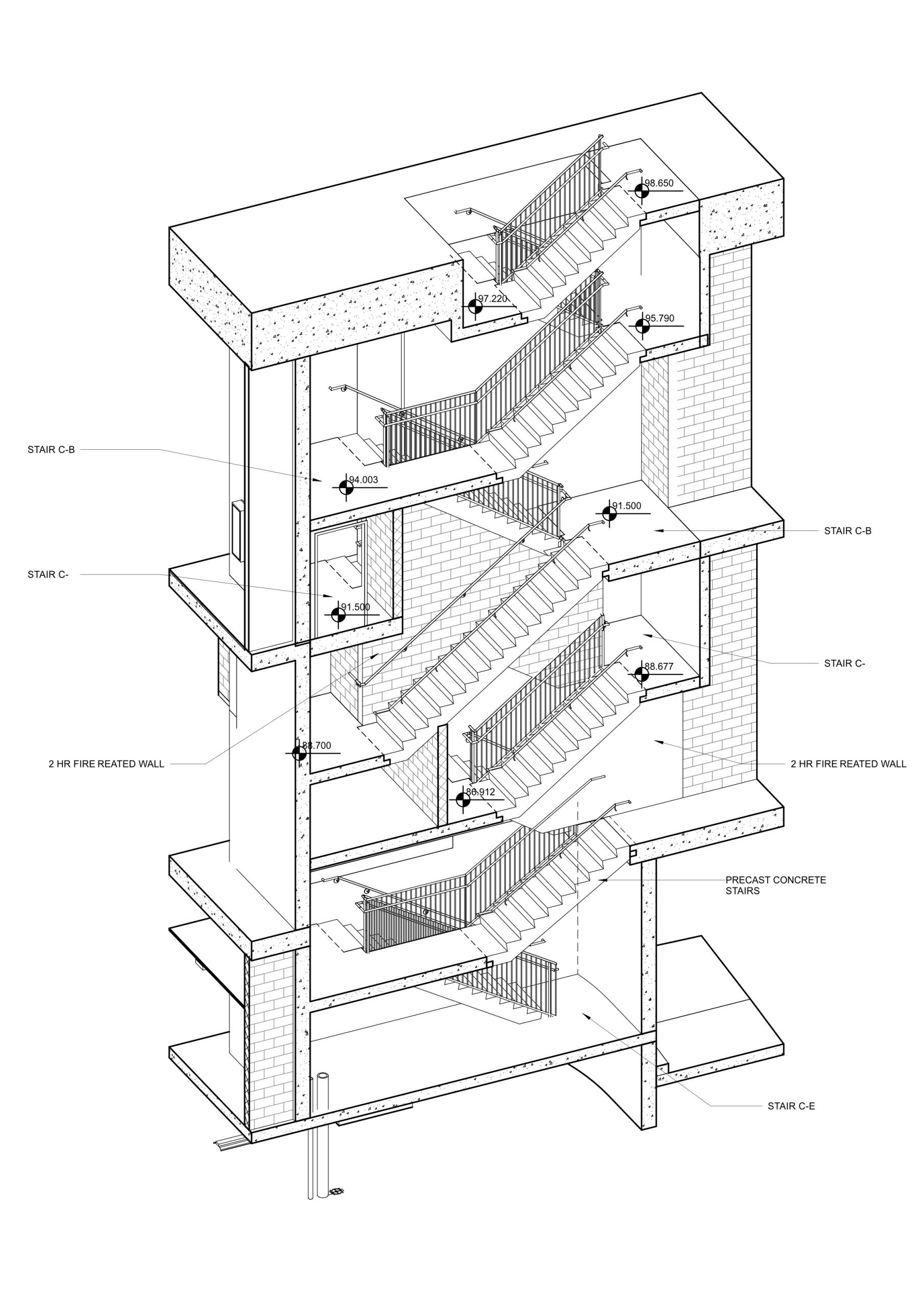

Stair isometric clarifying circulation, assembly geometry, and coordination within the building package.

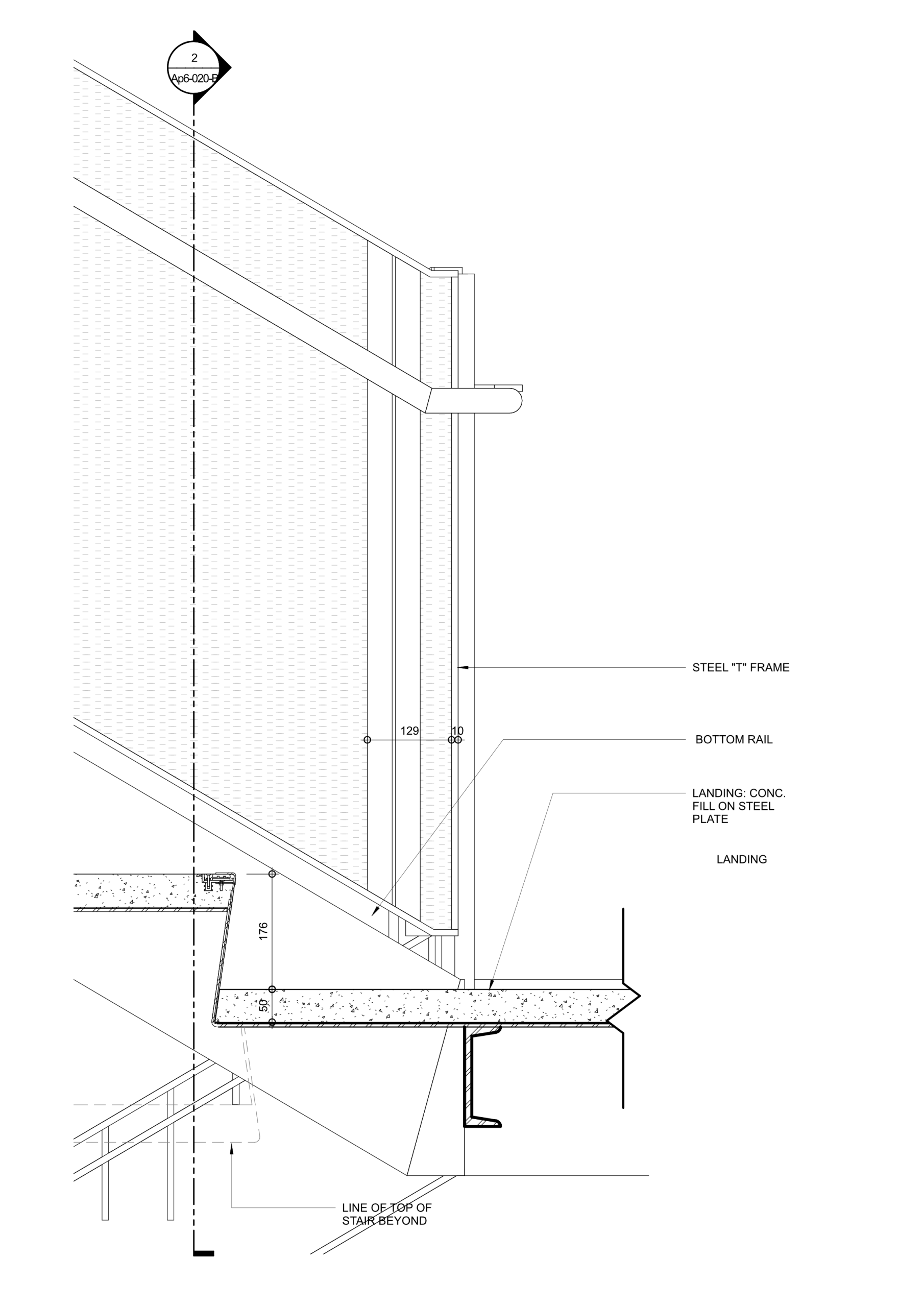

Below-grade stair landing detail for The Well
Stair landing detail documenting below-grade steel and landing assembly conditions.

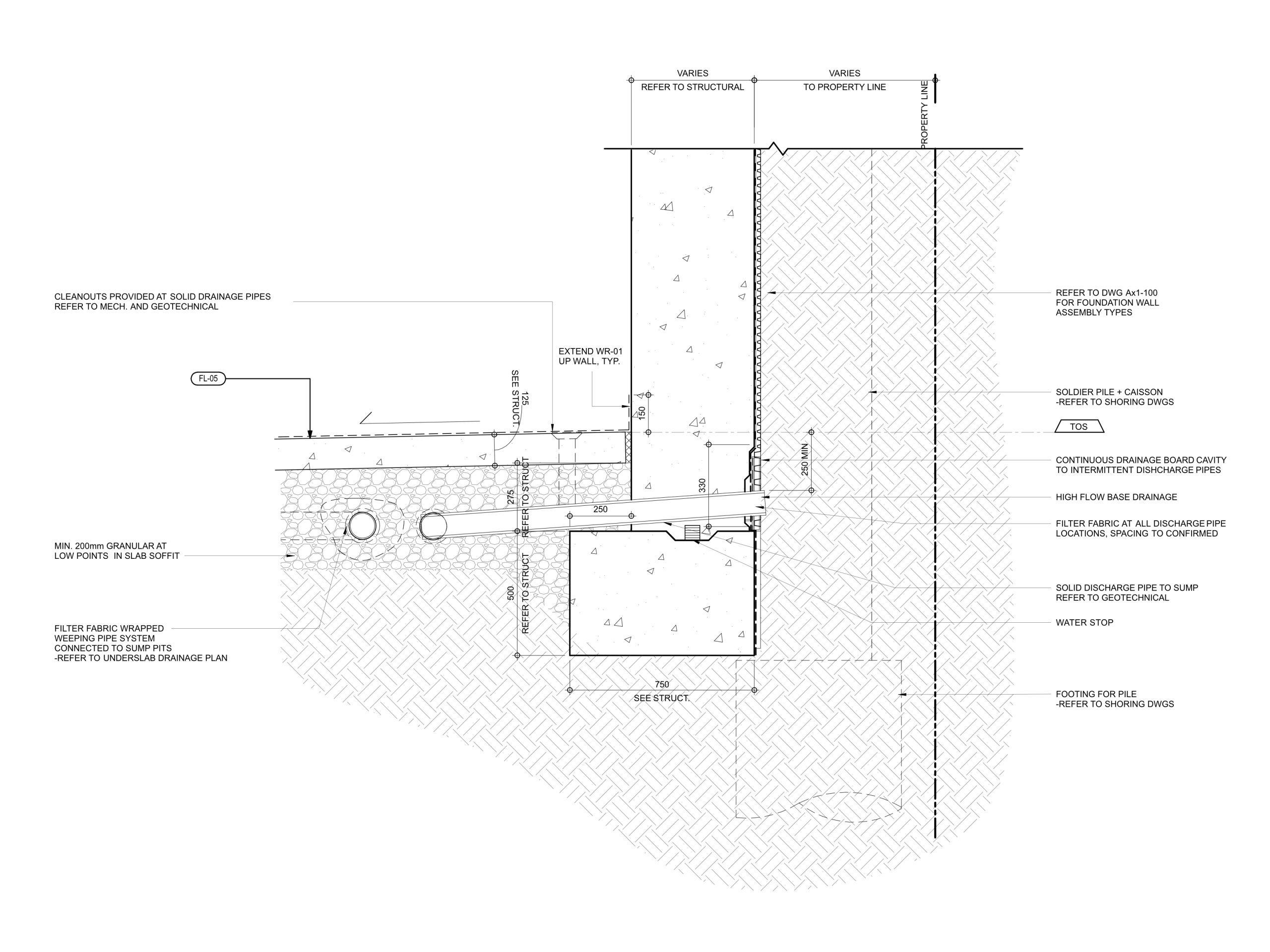

Foundation wall detail for The Well
Foundation wall detail documenting below-grade interface and assembly conditions.
05 / SITE RECORD

From Drawing to Site

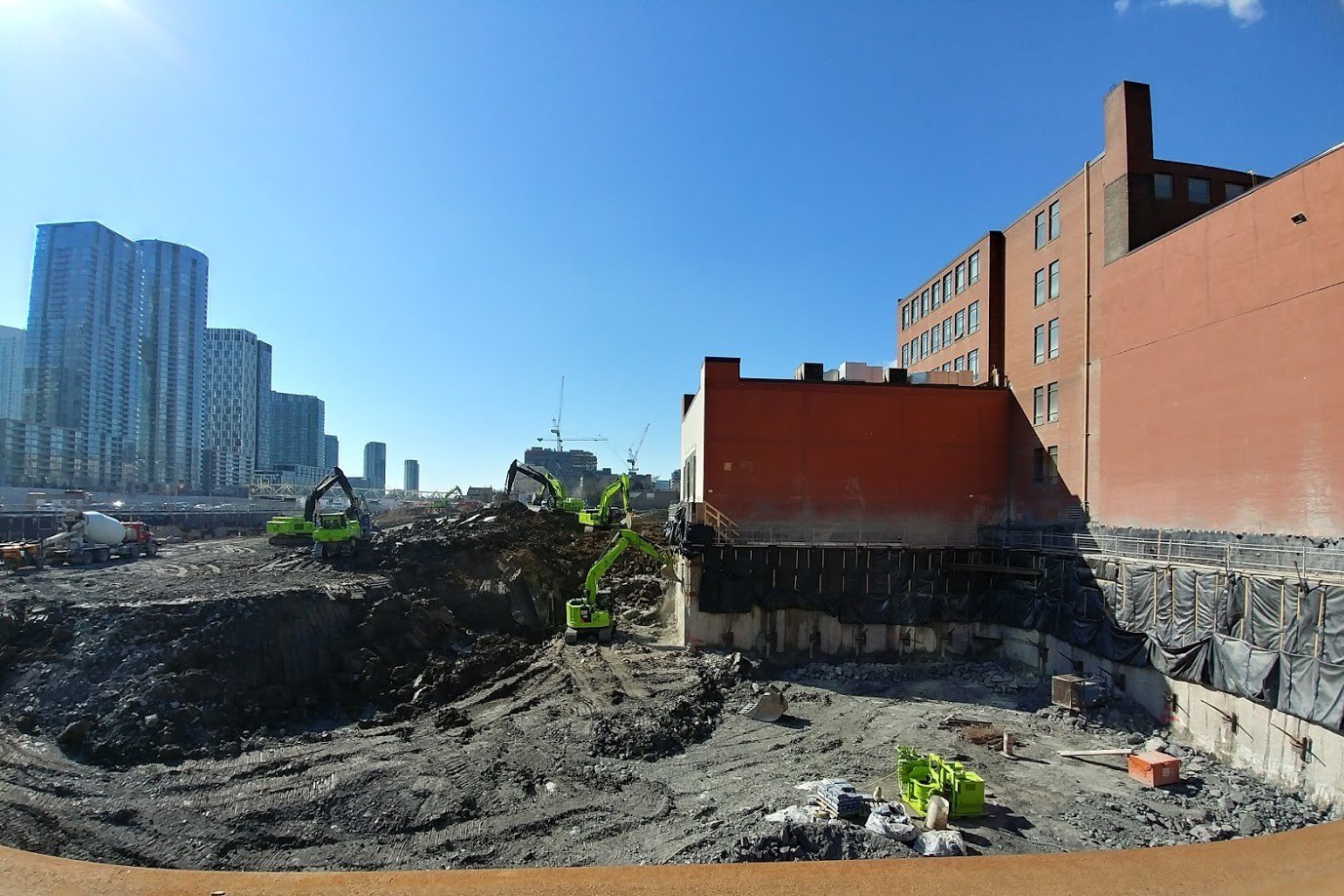

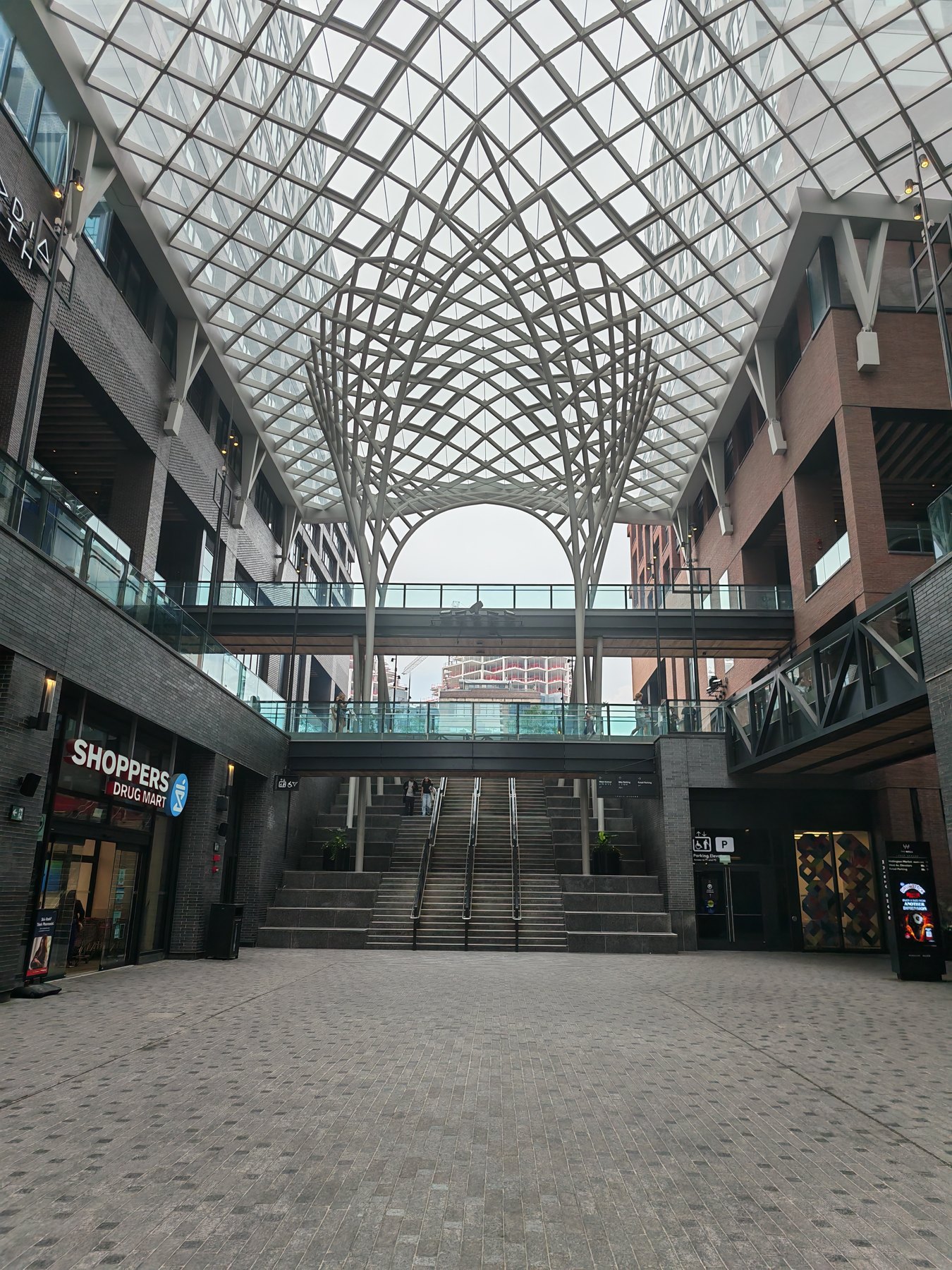

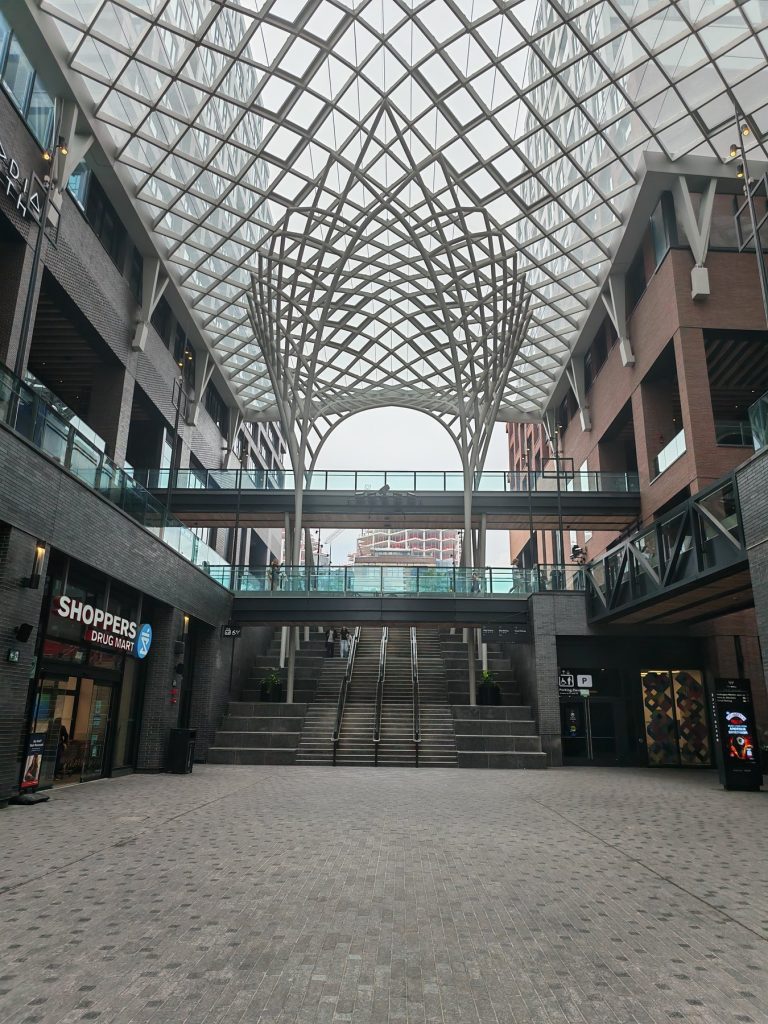

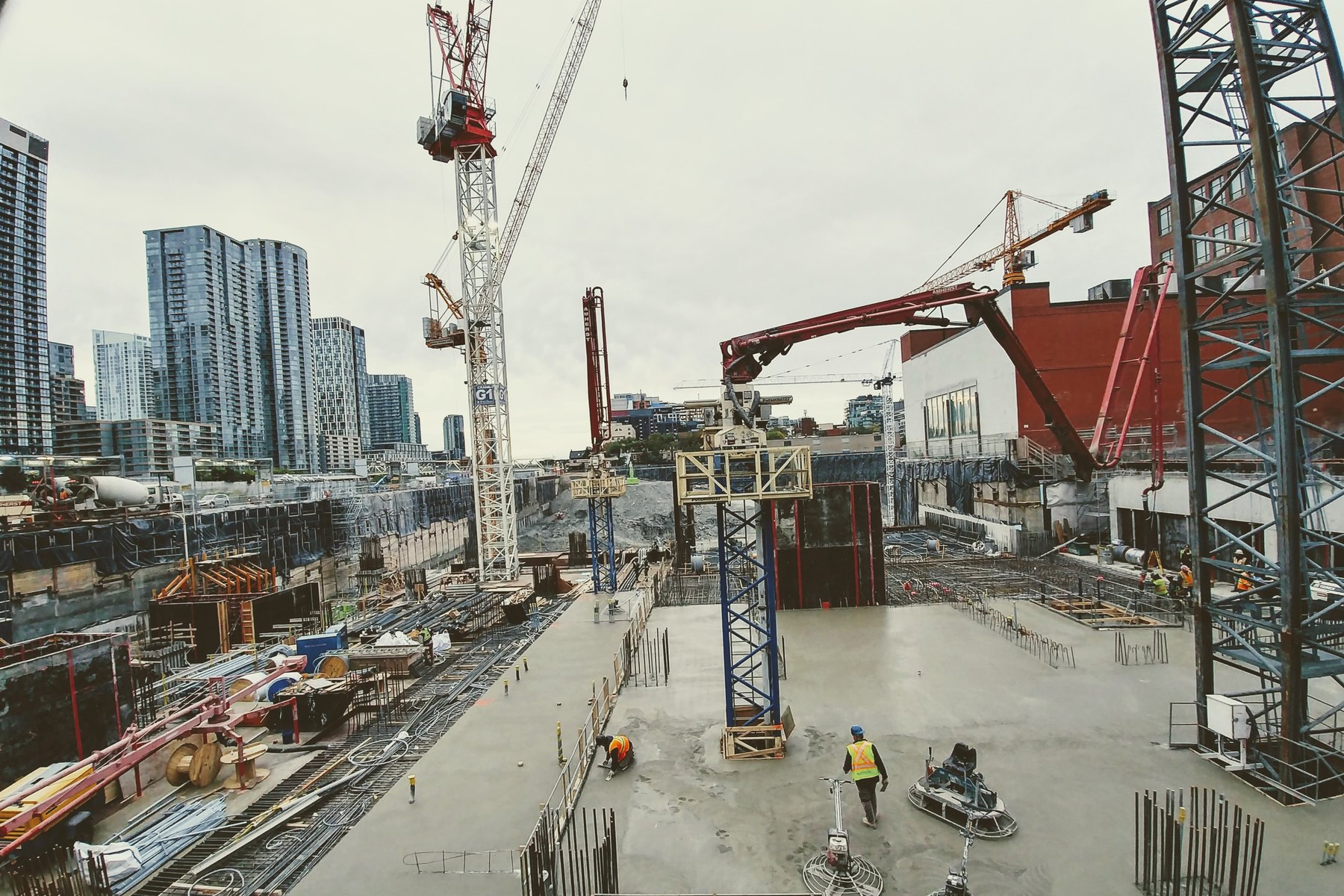

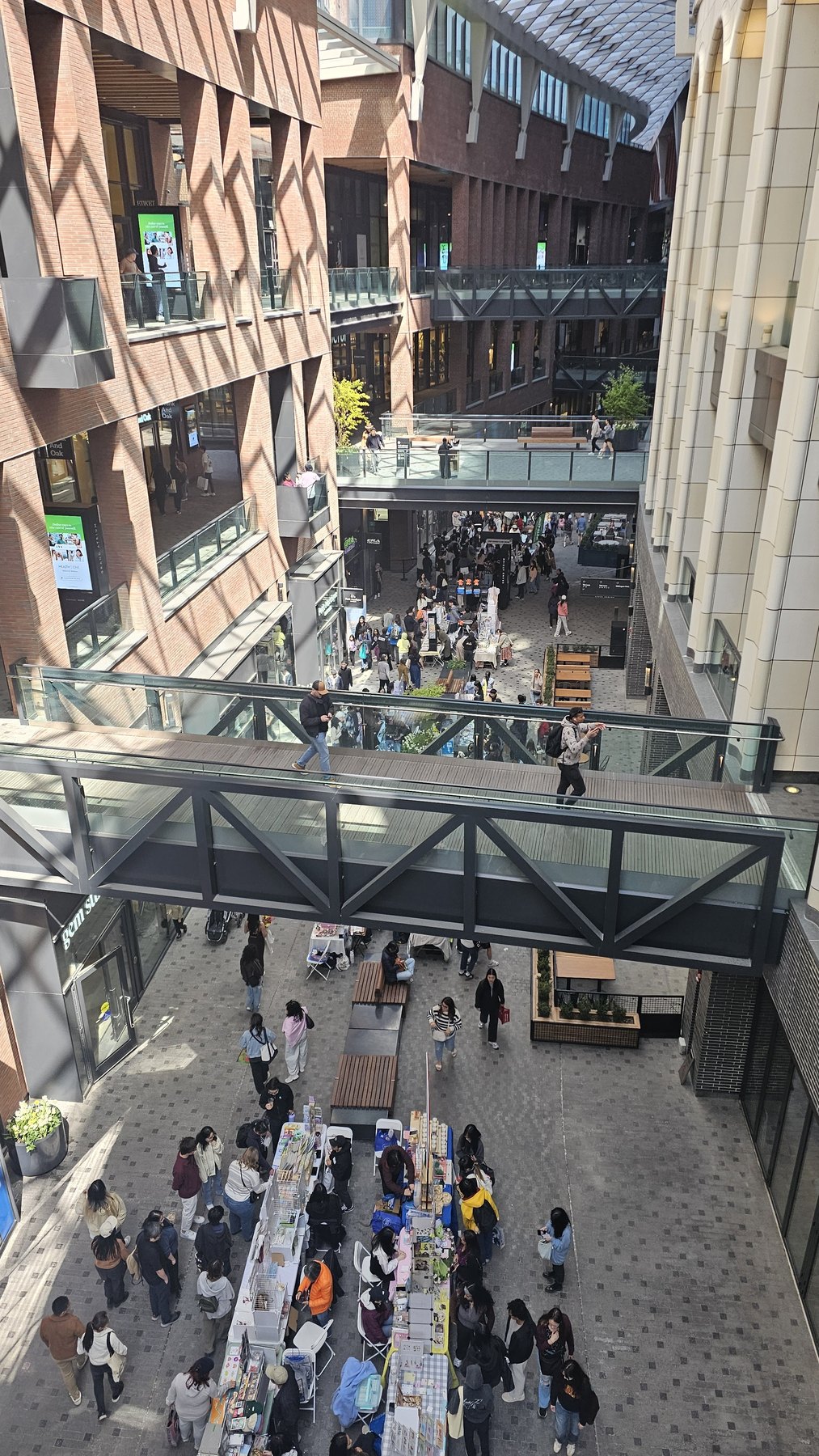

Selected construction and site photographs record the project’s translation from coordinated drawing sets into built work.
